We provide two versions of this JUMBO sized LCD display. The PM-1028A is designed to run off of a 9V (7-11V) independent power source. The PM-1028B is a 5V common ground version. The figure height is 21mm.

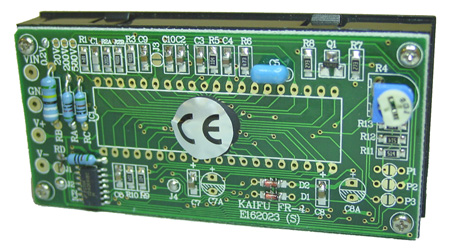

High quality SMT construction provides high reliability and the decimal point selection is conveniently done by wire jumpers. These panel meters implement dual slope integration A-D conversion measuring methods. The PM-1028A and PM-1028B come in an easy to install "snap-in" mountable bezel (typical rectangular hole size 88mm x 41mm).

Features

• Jumbo LCD display, 21mm Figure Height
• Single 5 Volt Common Ground (PM-1028B) or 9V Independent Power Supply (PM-1028A)
• Voltage Divider Resistors included and max. Measured Range Selectable by Soldering a Selection Joint
• Easy Bezel Snap-In Design (84mm x 41mm rectangular hole typical)
• Decimal point selectable by jumping on PCB
• Automatic Polarity indication
• Guaranteed zero reading for 0 volt input
• High input impedance (>100MW)

Possible Applications
Voltmeter
Thermometer
PH Meter
DB Meter
Watt Meter
Current Meter
Capacitance Meter
Lux Meter
LCR Meter
Other Industrial & Domestic Uses

View Product Specifications (PDF)
