0-30VDC;0-5A Variable / 1A;5VDC Fixed, Dual Output Bench Power Supply (CSI3005X5)
Price: $129.00
45 IN STOCK
High stability LCD digital read-out bench power supplies featuring constant voltage and current outputs. Short circuit and current limiting protection is provided. SMT PC boards and a built-in cooling fan help ensure reliable performance and long life.The perfect choice for lab and educational use. 1A, 5VDC fixed output is on the rear panel.
| 1+ | 5+ |
| $129.00ea. | $122.00ea. |
High stability LCD digital read-out bench power supplies featuring constant voltage and current outputs. Short circuit and current limiting protection is provided. SMT PC boards and a built-in cooling fan help ensure reliable performance and long life.The perfect choice for lab and educational use. 1A, 5VDC fixed output is on the rear panel.
- SMD adhesive sheet element technology for internal pcb construction
- Attractive yellow large LCD display
- Built in cooling fan
- Multiloop high precision voltage regulation
- Progressive current regulation
- Dual terminal system. Safety test style or expandable screw terminals
- Overload protection circuit
- Low ripple voltage: <1mV P-P
- Output polarity: positive or negative
- Rugged reinforced metal frame construction
- Source effect: 5 x 10(-4) =2mV
- Load effect: 5 x 10(-4) =2mV
- Ripple coefficient: <250uV
- Stepped current: 30mA +/- 1mA

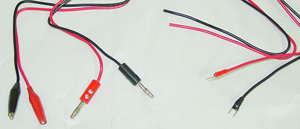

Includes: (1)Banana to Aligator & (1)Spade to Open End Cables
