Fluke 287 True-RMS Electronics Logging DMM w/ TrendCapture (FLUKE 287)

Part Number: FLUKE 287

0 IN STOCK

For our current low price please call 1-800-528-1417
between 8:00AM & 5:00PM Mountain Standard Time (Monday-Friday).

Fluke 287 True-RMS Electronics Logging Multimeter with TrendCapture

Our most advanced DMM for demanding electronics professionals.
Advanced.  Precise.  Accurate.  Logging DMM with TrendCapture.

The Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its’ unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before, putting more problem solving power in your hands. It is the ultimate handheld tool for demanding applications that require high-precision.

includes:

Manual 6 AA Batteries, installed TL71 Silicone Test Leads Probe Holder Two AC72 Alligator Clips

Supplemental Material:

• Registration Card
• Cal Practices Document
• CD-ROM Users' Manual (16 languages)
• Getting Started Manual
• Statement of Calibration Practices Document

Key Features Include:

• Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously be displayed at the same time.
• Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, or unattended monitoring while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC. (Software and interface cable optional).
• Log multiple sessions or log data continuously for over 200 hours.

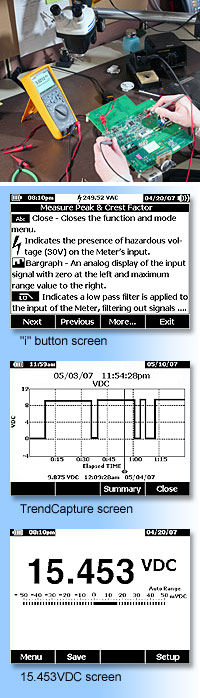

• i-info button. On board help screens for measurement functions. Unsure about a function? Go to that function and Press the “i” button.
• Now, name your saved measurements and also recall measurements made in the field
• Real Time Clock – for automatic time stamping of saved readings
• Field upgradeable and expandable meter lets you stay current as new capabilities are added
• Multi-lingual interface
• Min/Max/Average with Time Stamp to record signal fluctuations
• Soft keys, scroll buttons and easy navigation control access to secondary functions.
• 0.025% Basic DC accuracy
• 100 kHz ac bandwidth
• True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads.
• Measure up to 10A (20 A for 30 seconds; 10A continuous)
• 100 mF capacitance range
• Temperature function
• Relative mode to remove test lead resistance from low ohms or capacitance measurements
• Peak capture to record transients as fast as 250 μs
• Premium test leads and alligator clips included
• Optional FlukeView forms enables you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents
• Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
• Limited lifetime warranty
• CAT III 1000 V / CAT IV 600 V safety rated

Specifications Voltage DC Accuracy 0.025 % Range and Resolution 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V Voltage AC Accuracy 0.4 %(true-rms) Range and Resolution 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V Current DC Accuracy 0.06 % Range and Resolution 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A Current AC Accuracy 0.6%(true-rms) Range and Resolution 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A Temperature (excluding probe) Accuracy 1.0 % Range and Resolution -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) Resistance Accuracy 0.05 % Range and Resolution 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ Capacitance Accuracy 1.0 % Range and Resolution 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF Frequency Accuracy 0.005% + 5 Range and Resolution 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz Additional functions/features Multiple on-screen displays Yes True-rms AC bandwidth 100 kHz DBV/dBm Yes Conductance 50.00nS Continuity beeper Yes Battery/Fuse access Battery / Fuse Peak 250 μS Elapse time clock Yes Time of day clock Yes Min-Max-Avg Yes Duty Cycle 0.01 % to 99.99 % Pulse Width 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms Hold Yes Isolated Optical Interface Yes Auto/Touch Hold Yes Reading memory Yes Log to PC Yes Interval/Event Logging Yes Logging Memory Up to 10,000 readings Environmental Specifications Operating Temperature   -20 °C to +55 °C Storage Temperature   -40 °C to +60 °C Relative Humidity   0% to 90% (0 °C - 37 °C)   0% to 65% (37 °C - 45 °C),   0 to 45 % (45 °C - 55 °C Electromagnetic Compatability   EMC EN6 1326-1 Vibration   Random vibration per MIL-PRF-28800f Class 2 Shock   1 meter drop per IEC/EN 61010-1 2nd edition Safety Specifications Overvoltage category   CAT III 1000 V / CAT IV 600 V safety rated Agency Approvals   CSA, UL, TÜV, CE Mechanical & General Specifications Maximum voltage between any terminal and earth ground   1000V Size   (HxWxL 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in) Weight   870.9 g (28 oz) Battery Life   100 minimum, 200 hours in logging mode Battery type   6 AA alkaline batteries, NEDA 15A IEC LR6

View Users Manual
