BlackJack SolderWerks Soldering Station w Digital Display for Lead Free Solder (BK3000LF)

Part Number: BK3000LF
Price: $59.00
Save 21.3%!
52 IN STOCK

Quantity:


Even if you are not soldering with lead free solder, virtually all consumer electronic product made since 2007 was fabricated using lead free solder to satisfy the RoHS directive now in effect in the European Union. Even products destined for the U.S. market have been converted in most situations.

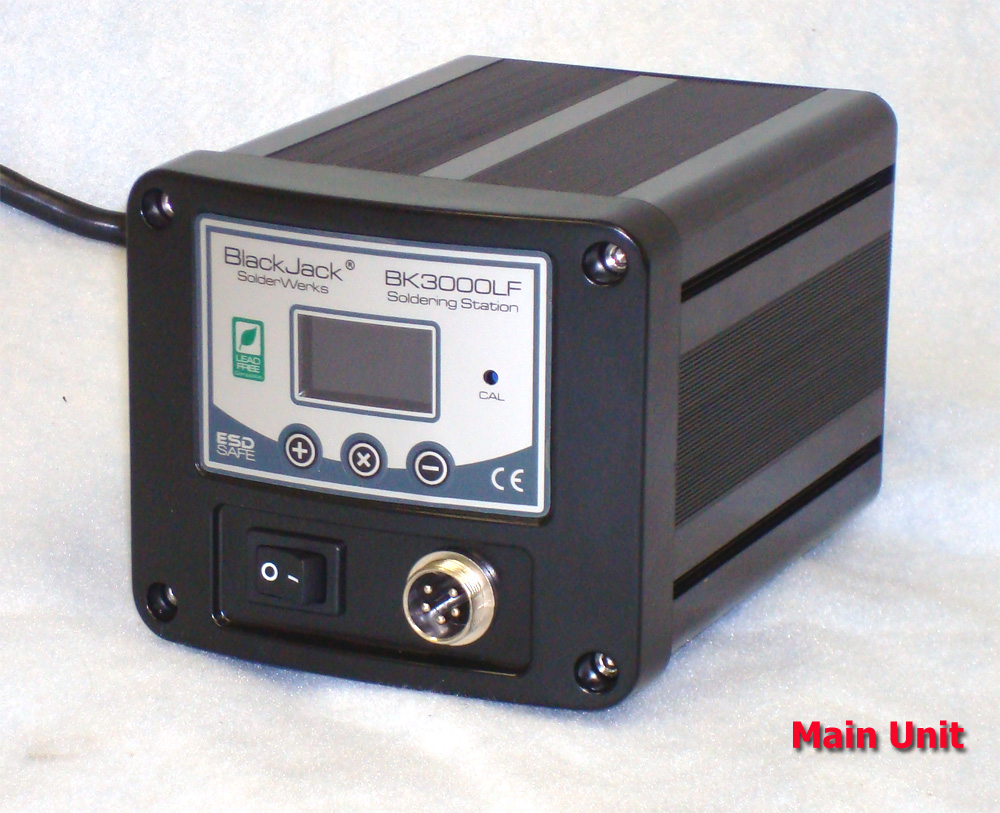

The BK3000LF is a compact unit designed to be used with lead free solder that provides reliable  peformance featuring microprocessor control and digital LED temperature display. Temperature is set by pushing  independent "+" or "-" buttons and the set temperature is displayed via numeric LED. The default temperature (200 deg F) setting can be quickly accessed by pushing the "X"button and if the user depresses all three buttons simultaneously, the LED display will change modes and display the actual temperature at the tip of the soldering iron.....When the set temperature has been reached, the BK3000LF will produce a short beep informing the user that soldering can commence.

The chassis is manufactured with very attractive extruded aluminum providing the high tech look that is consistent throughout the BlackJack SolderWerks series of soldering and rework systems.. The BK3000LF features a grounded tip for protection against electrostatic discharge. The unit comes with a soft comfort grip pencil iron and a rugged detached aluminum iron holder for more convenient operation. The unit is calibrated at the factory but there is a convenient calibration port on the front panel for users that desire to recalibrate or check calibration.  . A broad selection of tips are available and extra pencil irons are also available.

FEATURES:
  • Microprocessor controlled, with touch-type temperature adjustment.
  • Has excellent thermal recovery allowing lead-free soldering without a large increase in tip temperature.
  • Utilizes integrated ceramic heater, sensor, and tip design for effortless replacement of tip cartridges.
  • Provides 24V output to soldering wand  that assures effectiveness and safety.
  • Has variable temperature setting range from 200-480 degrees Celsius shown on  the digital
  • temperature display.
  • Auto shut-off option after 30 minutes of idle time. This feature can be set as active or inactive.
  • 70 watt large heat capacity allows faster temperature recovery during heavy soldering.
  • Numeric LED to display set temperature or actual tip temperature.
  • Temperature Stable Ceramic element
  • Easy to Replace Soldering Iron (not hard wired)
  • Grounded Tip & Barrel to prevent ESD damage
  • Iron Holder is Detached, Rugged aluminum construction
  • Fused AC input
  • non skid rubber feet on base

Downlaod the BK3000LF Instruction manual



SPECIFICATIONS:



Power Input :


110V
Output Voltage:
24V
Power Consumption:
70W
TemperatureRange:
200 - 480 degrees Celsius
Heating Element with Tip:
Ceramic Heater
Tip to Ground Resistance:
Below 2 ohms
Tip to Ground Potential:
Below 2mV
Weight:
2.5Kg



Replacement Soldering Irons & Tips available

REPLACEMENT IRON FOR LEAD FREE SOLDERING STATIONS (B010)
SMD Tweezer Adapter (CSIT003)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-08D)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-4D)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-12D)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-16D)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-24D)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-08LD)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-12LD)
Bevel Type Lead-Free Solder Iron Tip w/Heating Element (LF-52D)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1BC)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1BCF)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-2BC)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-2BCF)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-3BC)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1C)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-4C)
Chisel Type Lead-Free Solder Iron Tip w/Heating Element (LF-4CF)
Flow Type Lead-Free Solder Iron Tip w/Heating Element (LF-2BCM)
Flow Type Lead-Free Solder Iron Tip w/Heating Element (LF-3BCM)
Conical Type Lead-Free Solder Iron Tip w/Heating Element (LF-B)
Conical Type Lead-Free Solder Iron Tip w/Heating Element (LF-2B)
Conical Type Lead-Free Solder Iron Tip w/Heating Element (LF-I)
Conical Type Lead-Free Solder Iron Tip w/Heating Element (LF-LB)
Conical Type Lead-Free Solder Iron Tip w/Heating Element (LF-LI)
Tunnel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1401)
Tunnel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1402)
Tunnel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1403)
Tunnel Type Lead-Free Solder Iron Tip w/Heating Element (LF-1404)
Blade Type Lead-Free Solder Iron Tip w/Heating Element (LF-K)
Blade Type Lead-Free Solder Iron Tip w/Heating Element (LF-KL)
Blade Type Lead-Free Solder Iron Tip w/Heating Element (LF-KU)
Sharp-Bent Type Lead-Free Solder Iron Tip w/Heating Element (LF-02J)
