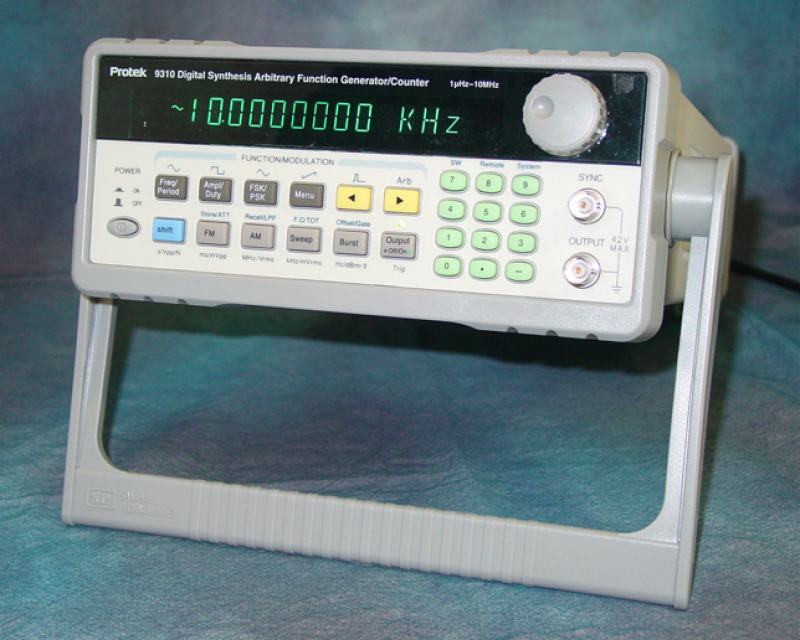

PROTEK 10MHz Digital Function Generator/Counter

Availability:

Available For Back Order

Item: PROTEK 9310

Quantity	Price
1	$ 599.000

Quantity : 0 In Stock

Add To Cart

Continue Shopping

Specifications:

Frequency Range: Main;100µHz-10MHz/ Stored;100µHz-100kHz
Resolution: 1µHz
Accuracy: ±5x0.000001
Stability: ±1x0.000001
Main Waveform: Sine, Square, TTL
Level Resolution: 12 Bits
Sampling Rate: 200MS/s
Sine Waveform Distortion: 0.1% (20MHz-100kHz)
Square Waveform Rise/Fall Time: Less then 25ns
Waveforms: 27 Waveforms
Waveform Length: 4096 Dots
Amplitude Resolution: 10 Bits
Amplitude Range: 2mV-20Vp-p(high impedance), 1mV-10Vp-p(50?)
Amplitude Accuracy (at 1kHz): ±(1%+0.2mV)
Amplitude Stability: ±5%/ 3 hours
Output Impedance: 50?
Offset Range: ±10V(high impedance), ±5V(50?)
Offset Resolution: 2µV(high impedance), 1µV(50?)
Offset Error: ±1%+10mV
AM Carrier Waveform: Sine, Square
Modulation Mode: INT, EXT
Modulation Waveform: Sine, Square, Triangle, Up-lamp, Down-lamp
Modulation Frequency: 10µHz-20kHz
Modulation Depth: 1%-120%
FM Carrier Waveform: Sine, Square
Modulation Mode: INT, EXT
Modulation Waveform: Sine, Square, Triangle, Up-lamp, Down-lamp
Modulation Frequency: 100µHz-10kHz
PM Waveform: Sine, Square
PSK: Phase 1(P1), Phase 2(P2)
PSK Modulation Control Mode: INT, EXT (TTL level, Low level P1, High Level P2)
Burst Waveform: Sine, Square
Burst Counting: 1-10000 period
Burst Control Mode: INT, EXT
Sweep Waveform: Sine, Square
Sweep Time: 1ms-800s(linear), 100ms-800s(log)
Sweep Mode: Linear, Log
Sweep External Trigger Signal Freq: DC-1kHz(linear), DC-10kHz(log)
Sweep Control Mode: INT, EXT
Output of Modulation Signal Waveform: Sine, Square, Triangle, Up-lamp, Down-lamp
Waveform: 100µHz-20kHz
Amplitude: 5Vpp±2%
Output Impedance: 620?
Storage Parameter: Single frequency, amplitude, waveform, DC offset values and Function state
Storage Capacity: 10 signal
Dimension: 10.2 x 14.8 x 4"
Limited to stock on hand
