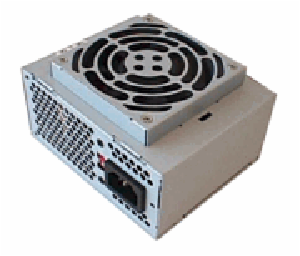

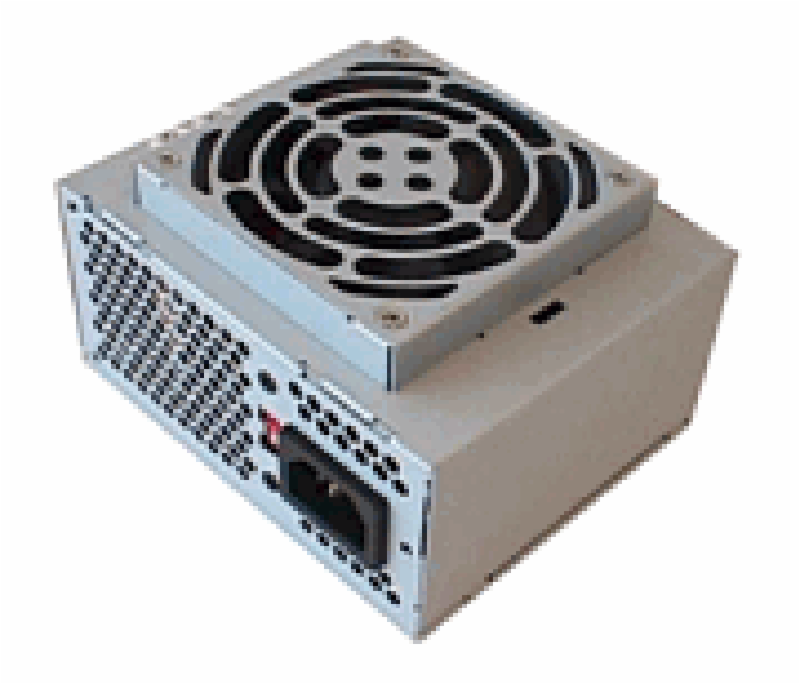

145 watt microATX (fits E-Machine & Other Systems)

Replace that failed power supply with a hi reliability version of the MICRO ATX form factor power supply. Switchable input ranges(95-132Volts AC or 180-264Volts AC make this supply usable virtually anywhere in the world.

• FEATURES:
• high efficiency
• internal 12VDC ball-bearing cooling fan
• Low Noise & Ripple
• Complies with FCC part 15 subpart J class B 115 VAC operation & CISPR22
• Output over voltage protection
• Short circuit protection on all outputs
• MTBF above 50,000 hrs at 40 deg C
• 100% Hi-pot & ATE tested
• Resettable power shut down
• 100% burn-in under high ambient temp. (50 deg C)
• Approved by UL 1950, CSA C22.2 Level 3, IEC 950, TUV EN60950, NEMKO +CB Report

SPECIFICATIONS:

• Transient Response: Output Voltage returns in less than 1ms max. at a 25% load change
• Hold-up Time: 16ms minimum at full load & nominal input voltage
• Dialectric Withstand: Input to frame ground 1800 VAC for 1 second
• Humidity: 5 to 95% RH
• Efficiency: 65% min., at full load
• Power Good Signal: Power on delay time 200ms to 1000ms, off delay 1ms
• Overload Protection: 150% Max.
• Remote ON/OFF Control
• The power supply shall accept a logic open collector level which will disable/enable all the output voltages (excluding +5v standby)
• As logic level is low/high, output voltages are enabled/disabled
• Input Characteristics
• Input Range: 95 to 132 & 180 to 264 VAC, switch selectable
• Frequency: 47 to 63 Hz
• Input Current: 10A(RMS) @ 115VAC, 6A (RMS) @ 230VAC
• Inrush Current: 60A Max. for 115VAC, 90A max for 230VAC
• MAXIMUM POWER: 145 W
• Total Combined Power of +3.3V & +5V outputs is 90 watts maximum
• DIMENSIONS: (LxWxH) 76mm x 125mm 100mm
