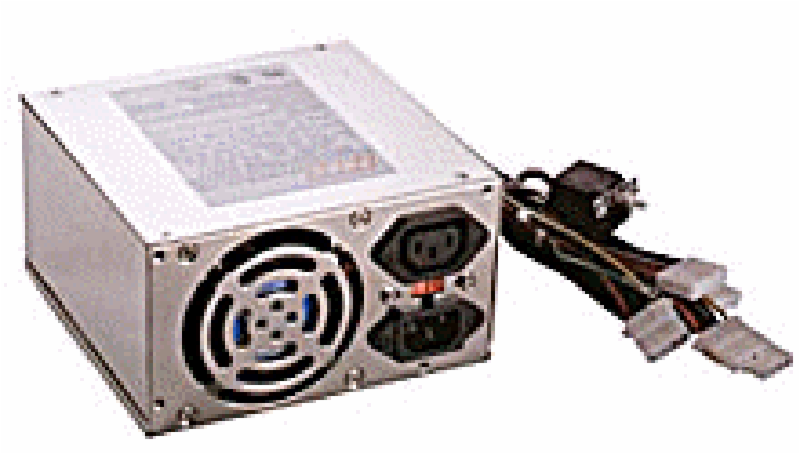

300 WATT PS/2-AT POWER SUPPLY

Availability:

6 In Stock

Item: PS300AT

Quantity	Price
1	$ 49.000

Quantity :

Add To Cart

Continue Shopping

Input Characteristics

Voltage: 90-132 VAC or 180-264 VAC switchable
Frequency: 48 Hz to 63 Hz

Specifications
Temperature range:
Operating 0 o C ~ 50 o C; Non-operating: -20 o C ~ 80 o C
Temperature coefficient: 0.01% o C
Transient response: Output voltagereturns in less than 1 ms max. following a 25% load change
Hold up time: 16ms minimum at full load & nominal input voltage
Dielectric withstand: Input/ output 1800 VAC for 1 second input to frame ground 1800 VAC for 1 second
Humidity: 5~ 95% RH Efficiency: 65% Min., 70% typical, at full load
Power good signal: On delay 100 ms to 500 ms, off delay 1ms
Overload protection: 150% Max
Over voltage protection: +5V output: 6V± 0.5V

Dimensions(WxHxL): 150 x 86 x 140 (mm)/ 5.9" x 3.4" x 5.5" Product Specifications
Features

High efficiency

Low noise and ripple

Output over voltage protection

Short circuit protection on all outputs

Resettable power shut down

Approved by UL 1950, CSA 22.2 Level 3, TUV EN60950 CB Internal 12 VDC fan provided

Complies with FCC part 15 subpart J class B 115 VAC operation and VDE VFG 243 class B 230 VAC operation

100% burn-in under high ambient temperature (50 o C)

MTBF above 50,000 hours

100% Hi-Pot & ATE tested
