Rack Mount Power Supply

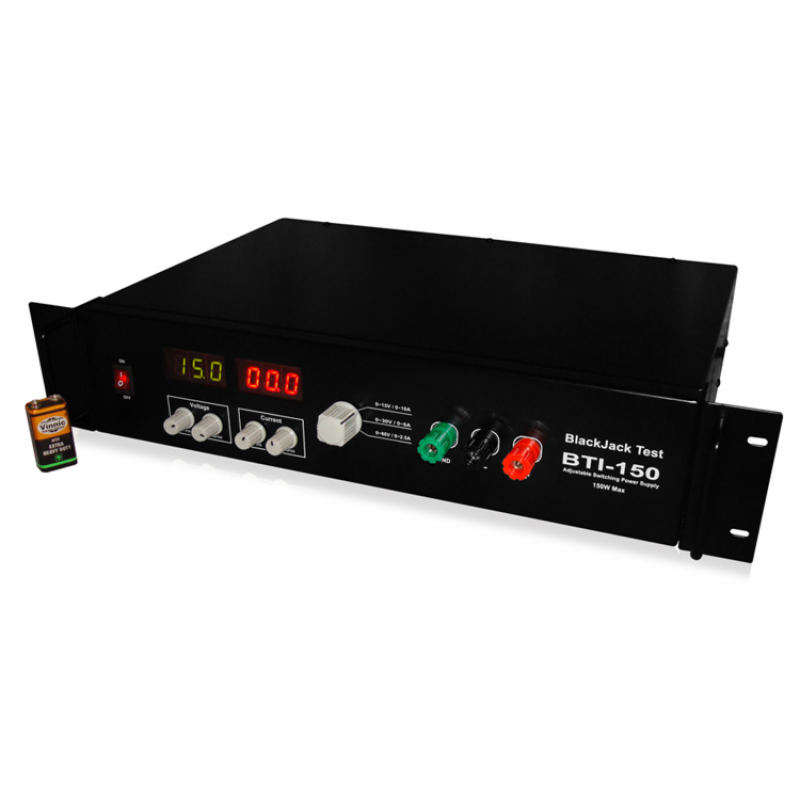

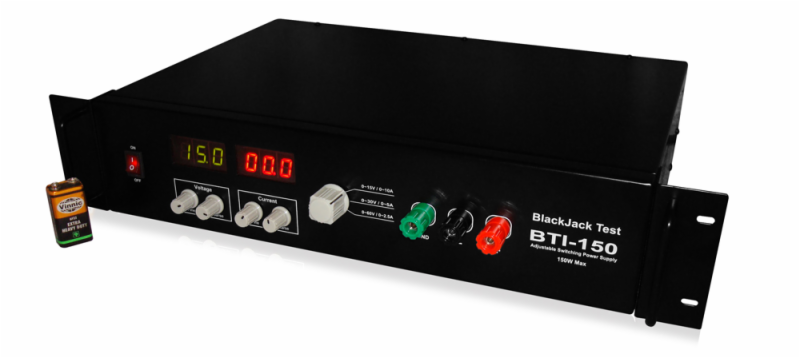

Low cost, The BTI-150 is a high efficiency switch-mode power supply designed to be rack mounted in a standard 19" rack mount enclosure. This rack mount power supply has a front panel switch which allows the user to select three different variable DC voltage outputs. Output one allows for voltages from 0 to 15 volts DC and an output current from 0-10Amps Output two allows for voltages of 0-30 Volts DC and 0 to 5 amps while the final output position provides for output voltages of 0 to 60 volts DC at 0 to 2.5. Amps.

The outputs are all displayed on the front panel led displays. The 1U design makes this rack mount power supply ideal for high use application areas. Multiple supplies can easily be stacked in the rack mount configuration. Additionally, the user has the option of removing the front panel mounting ears if a bench top application is preferred.

This rack mount power supply provides a versatile solution to many applications. The 1U dimension (19in (48cm) width & 1.75in (4.45cm) height allows the end user a broad selection of DC voltage outputs with minimal impact on the total size capacity of the rack mount enclosure.
