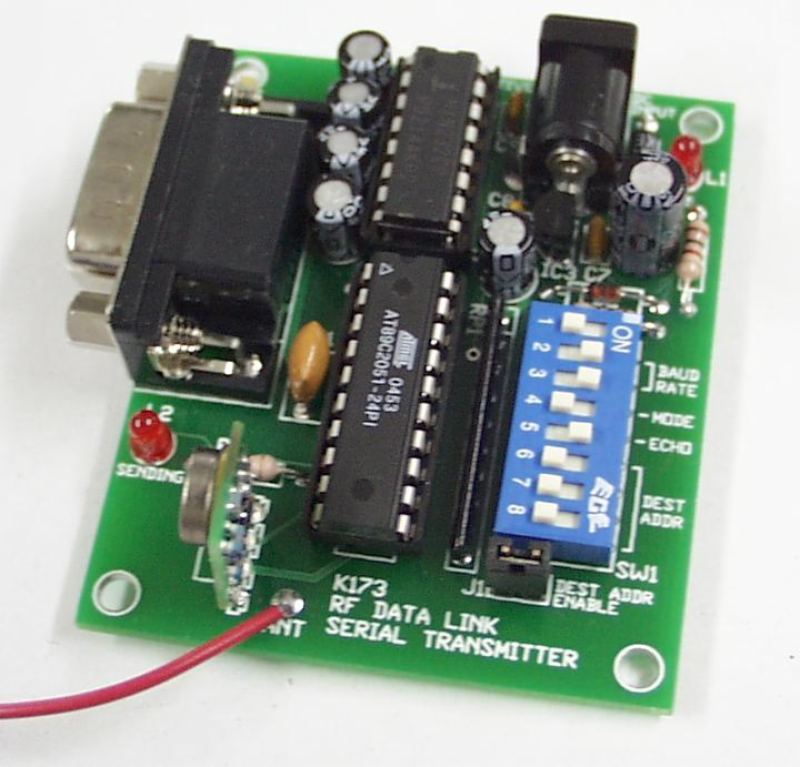

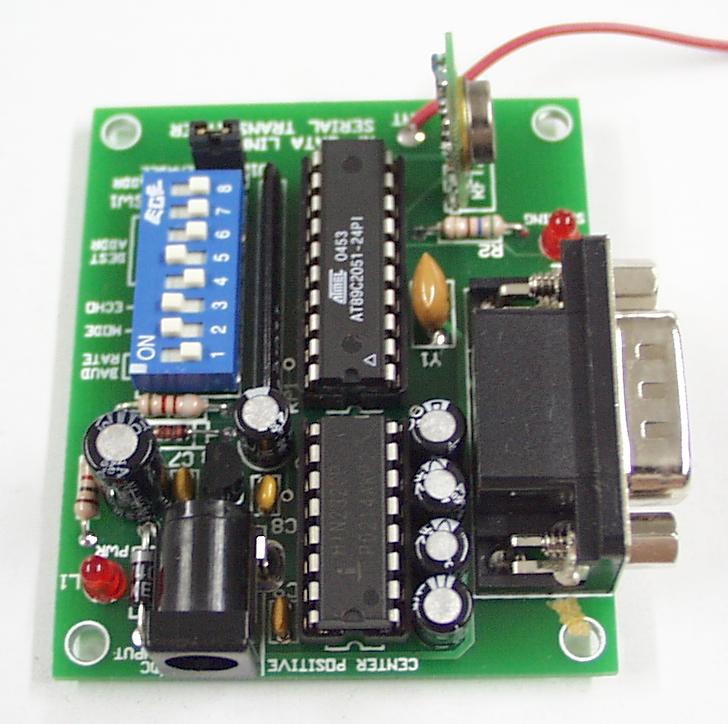

RF Data Link Serial Transmitter

K173 can receive up to 64 characters via its serial port and transmit the message. The serial port baudrate is selectable from 300, 1200, 2400 and 9600. The data format is fixed at 8N1 (8 data bits, no parity, 1 stop bit). Two input modes are available as well as input echo if required. An optional destination address can be automatically inserted into the message before transmitting.

Kit Manual
