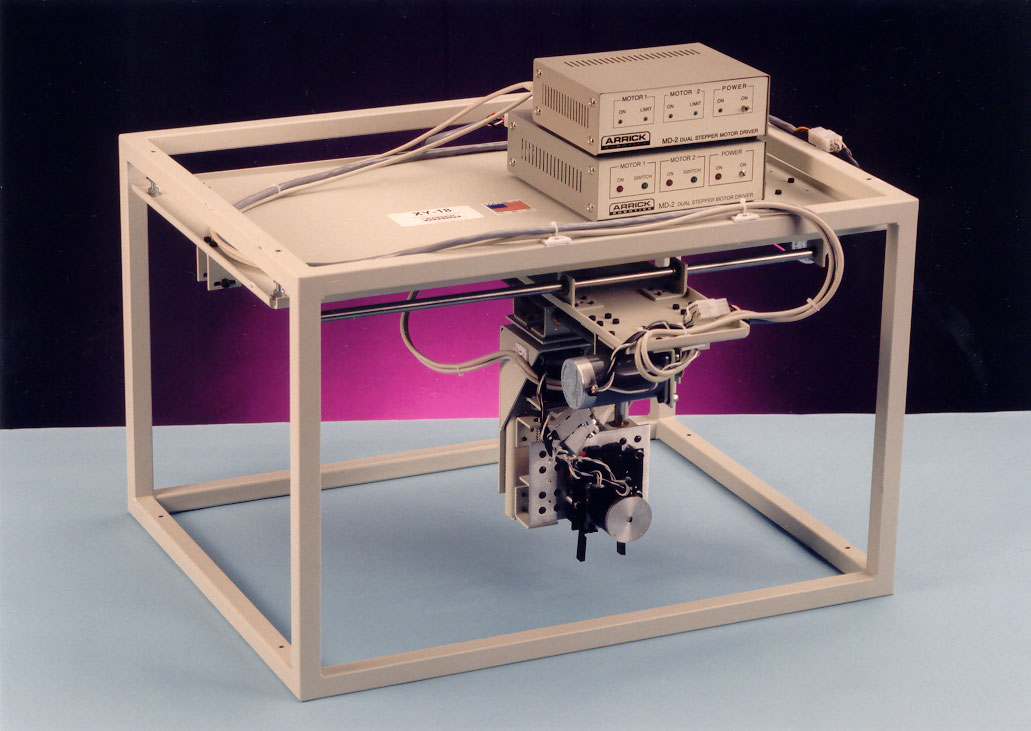

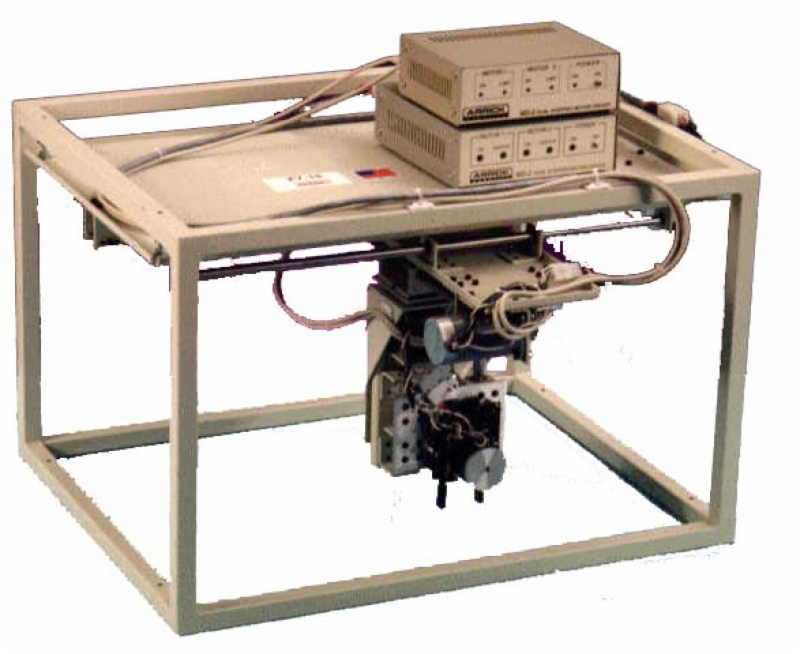

18 in. x 18 in. x 2 in. Robotic Workcell

Individual Product Details:

Now's the time to automate those tasks currently being performed manually. By combining our MD-2 stepper motor system with our XY positioning table and a gantry stand, a complete robotic workcell can be created. Our Z-2 Positioning Table is added to create 3-axis motion. In many cases, an XYZ robotic workcell can replace a very elaborate robotic system at a fraction of the cost. Just connect to your personal computer, attach a tool, and your system is complete. Add our GR-2 Gripper for even more capability. Robotic workcell packages come complete with motor control systems, positioning tables, hardware and an accessory kit which includes a parallel printer port, cables, cable mounting hardware, and a T-handle hex wrench.

Note: Special Order Item, availability is usually 3-4 days.

You will:
Supply a personal or industrial computer.
Mount the components together (instructions provided).
Route cables from motors to MD-2 drivers (hardware included).
Attach your tool (may require custom made hardware).
Load the MD-2 software.
Set motor parameters.
Program the desired motion.

Increase Performance with a PR23 Pulley Reducer
Add two PR23-2.5 pulley reducers for the X and Y axis of your robotic workcell to achieve faster speeds, more torque, and a resolution of .002" per step.

Includes:

• XY-18 18" x 18" Positioning Table
• Z-2 2" Positioning Table
• MD-2b Dual Stepper Motor Control System
• MD-2a Dual Stepper Motor Control System
• ST-18 Gantry Stand
• BR-2 Right-Angle Bracket for mounting the Z axis
• Accessory package, cables, parallel port, tools, etc.
