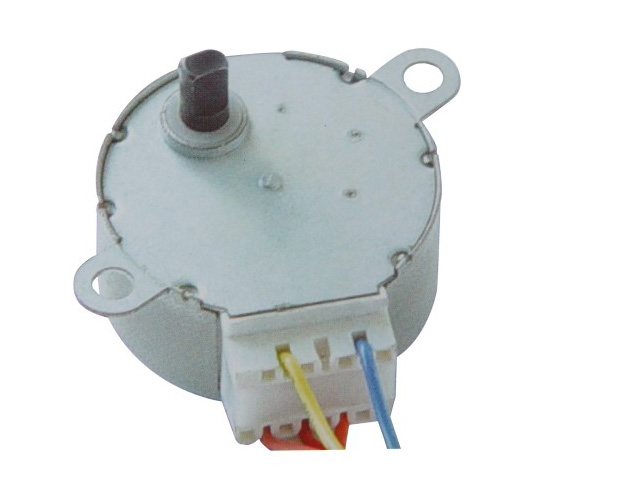

12VDC Stepper Motor 60mA
Availability: We are sorry, but this item has been Discontinued
Item: MOTS 2
Quantity      Price
1      $ 15.900

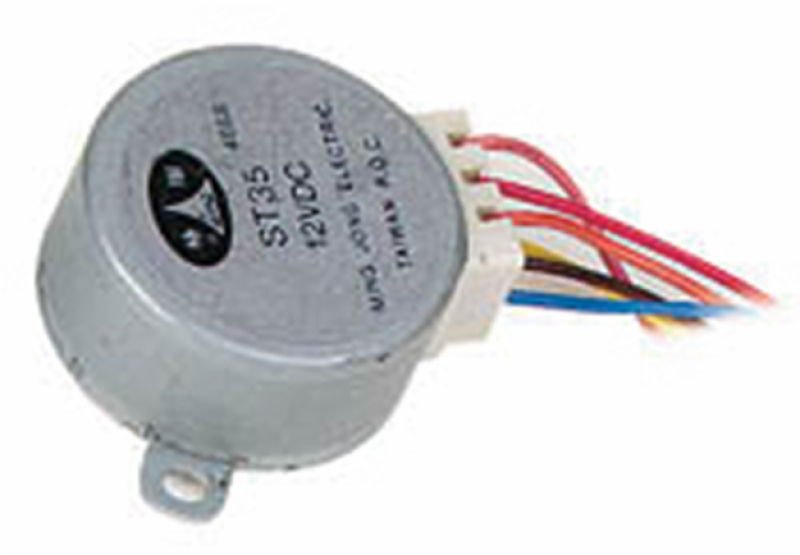

12VDC Stepper Motor 60mA
Continue Shopping
Specifications:
  • colors B1: pink A1: orange A2: yellow B2: blue GND: red GND2 (for MOTS2): brown
Item Specifications Unit
Rated Voltage 12 VDC
Current 92 60 48 40 mA
Impedance 130 200 250 300 Ω
Pull-in Torque (at 100pps) 900 650 620 470 gf - cm
Step Angle 7.5°/85 °
Reduction Ratio 1/85
Phase 4
Detent Torque min 500 gf - cm
Max Starting Pulse Rate 350 pps
Max Starting Pulse Rate 800 pps
Insulation Strength AC 600V-1sec Cut-Off Current :10mA
Temperature Rise 60 deg
Noise 40 dB
Diameter of Model 35.0 mm
Distance of Model (a) 42.0 mm
Distance of Model (a1) 10.0 mm
Height of Model 17.2 mm

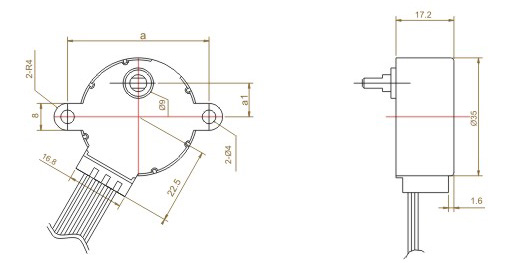

Dimensions

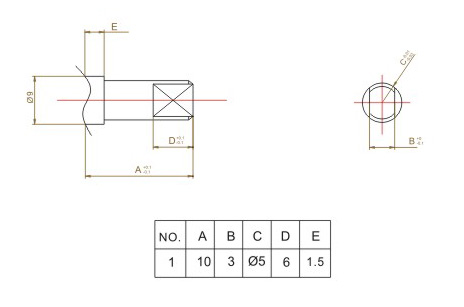

Shaft Type
