Stepper Motor Controller

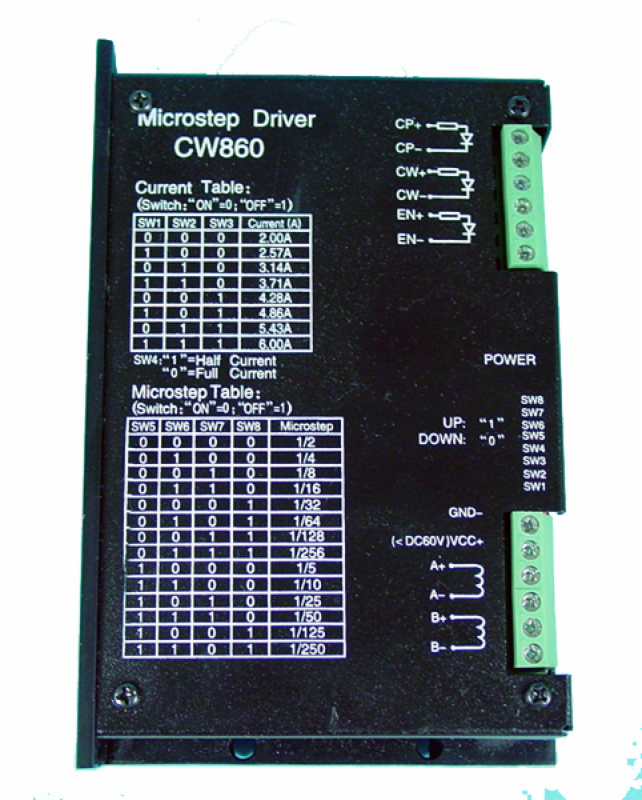

CW860 - 2 Phase Microstepping Stepper Motor Driver
(Bi-polar and Unipolar Motors)

Sale! Regular price $96.00

• DC Power input type: 24V-70VDC
• Output Current: 2.0A ~ 6.0A
• Dimensions: 147mm x 97mm x 30mm
• Weight: <500g
• Working environment: 15 ~ 40°C, Humidity <90%
• Control: Opto-isolated step / direction
• MicroStep: 1 (200), 1/2 (400), 1/4 (800), 1/8 (1600), 1/16 (3200), 1/32 (6400), 1/64 (12800), 128 (25600), 1/5(1000), 1/10(2000), 1/25(5000), 1/50(10000), 1/125(25000), 1/250(50000)
