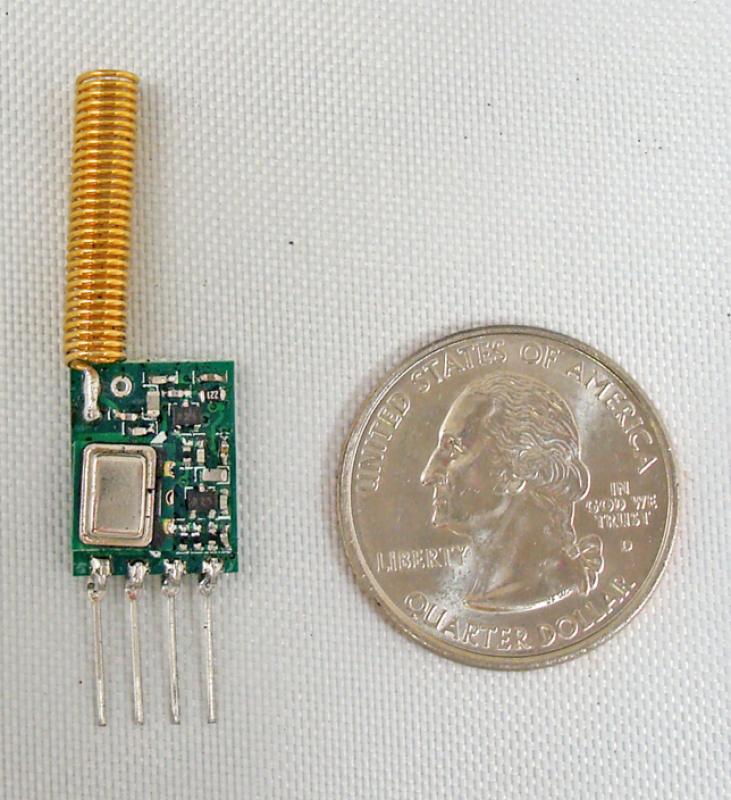

418MHz RF Transmitter Module w/Antenna

Ideal for setting up short range wireless links for remote control or data acquisition, this unit operates in the license free Industrial FCC bands and is a SAW transmitter with Power Amplify and works best with receiver RXB4411S-418-RH. It's easy to use and only requires 3 connections; power, ground and data.

• Power supply: 9-12VDC
• Current consumption: 43mA/12VDC
• Output power: 10dBm/12VDC
• Frequency: 418MHz
• Frequency tolerance: ±300KHz
• Modulation: ASK/OOK
• Modulation rates: 1.2 to 500kbps
• Antenna included

View Product Specs

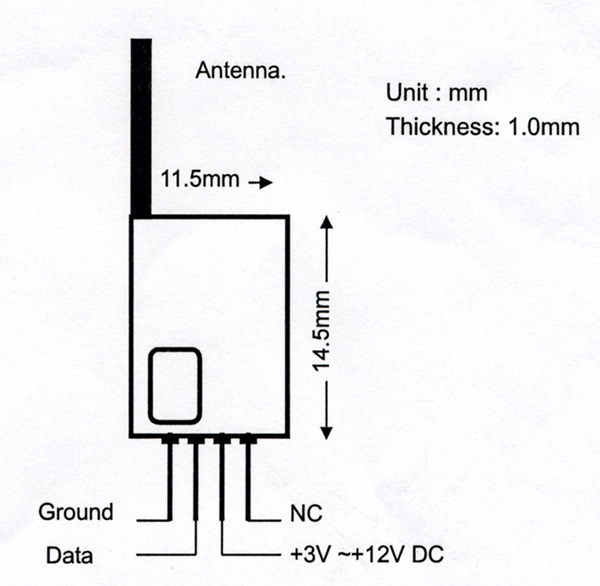

Board Dimensions
