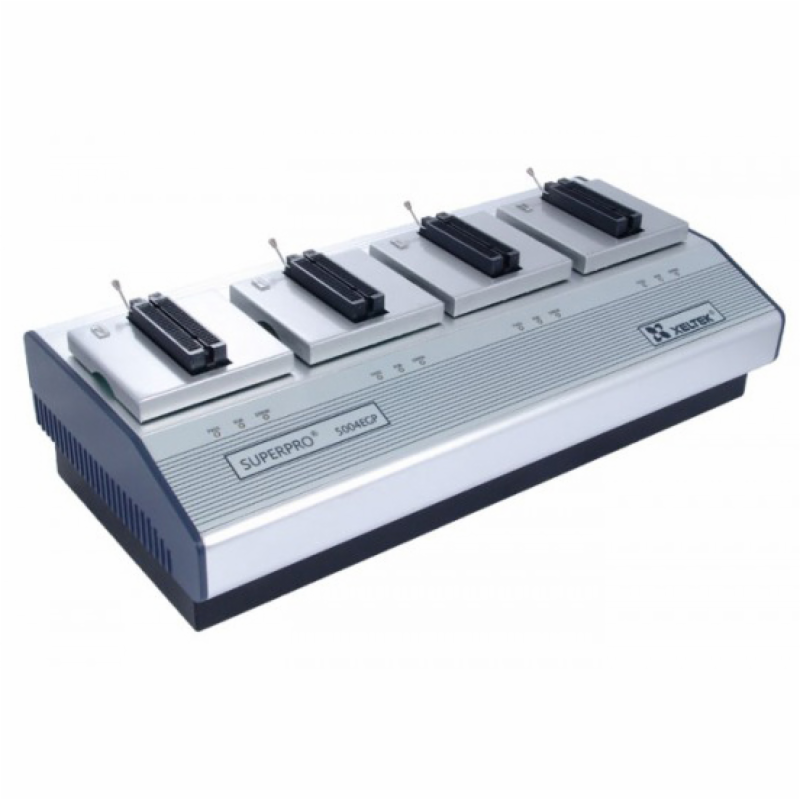

SuperPro 5004EGP Universal Gang Programmer

SuperPro 5004EGP Ultra-high-speed Intelligent Universal Gang Programmer Built-in 144 Universal pin drivers. Device List Software Download Product Manual

Features:

• Supports 47,000+ IC devices from 180 manufacturers and continuing
• Programs devices with Vcc as low as 1.2V.
• Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds.
• Built with 144 universal pin-drivers for support of today's most complex devices.
• Universal and device independent socket adapters available for various package types up to 144 pins.
• 4 independent programming modules operating concurrently for high speed programming.
• USB2.0 interface to a PC for high speed programming.
• ISP/ICP programming capability through optional ISP/ICP adapter.
• Only IC manufacturer approved programming algorithms provide high reliability.
• Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
• Over-current and over-voltage protection for safety of the chip and programmer hardware.
• Compatible with Windows Vista and Win 7 x64
• CE and ROHS Compliant
• Includes the following advanced and powerful software functions:
  • Chip operation starts immediately upon proper chip insertion in Production Mode.
  • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
  • Password protection provides security for project files and production volume control.
  • Batch command combines device operations like program, verify, security into a single command at any sequence.
  • Serial number generators are available as standard or customer-specific functions.
  • Log file provides production quality tracking.

Speed Comparison:

Device Updates:

• XELTEK updates software and device algorithm regularly.
• Updates are available by mail at a nominal charge.

Warranty Support:

• Standard 2 Years Warranty: Included with purchase of SuperPro 5004EGP. Covers device update and repair.


Hardware & Electrical Specifications:

• Device Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND) n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic.
• Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP,TSOPII, PSOP,TSSOP,SON,EBGA, FBGA, VFBGA, GA, CSP, SCSP etc.
• PC interface: USB2.0 (High speed)
• Stand-alone Function: None
• Power supply. AC Adaptor: Input AC 100V- 240V;Output: 12V/6A.
• Main unit: Dimensions 438 * 216 * 94 mm ; Weight 4.3 Kg
• Package: Dimensions 550 * 252 * 145 mm; Weight 5.9Kg

Items included:

• Main unit with DIP48 Adapters
• AC adapter
• Software CD
• USB2.0 Cable
• User's Manual
• Register Card

Optional accessories:

• Adaptor in varies packages
