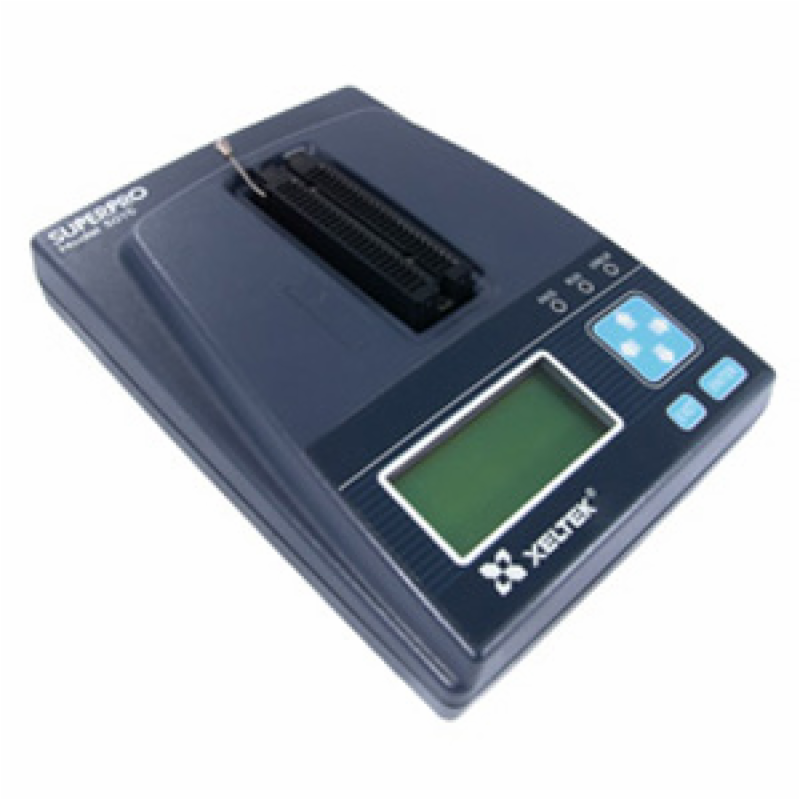

SuperPro 501S Universal Programmer

Device List
Software Download
Product Manual

Features:

• Supports more than 23,000 IC devices from 150 manufacturers and continuing.
• Programs devices with Vcc as low as 1.2V.
• Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds.
• Built with 48 universal pin-drivers for support of today most complex devices. Universal and device independent socket adapters are available for various packages.
• The programmer operates in either PC hosted mode or stand-alone mode.

  • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.

  • Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad. A CF (compact flash) card stores the project files. In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.

• ISP/ICP programming capability through optional ISP/ICP adapter.
• Only IC manufacturer approved programming algorithms provide high reliability.
• Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
• Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
• Compatible with Windows Vista x32and Win 7 x64
• CE and ROHS Compliant
• Includes the following advanced and powerful software functions:

  • Chip operation starts immediately upon proper chip insertion in Production Mode.

  • The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.

  • Password protection provides security for project files and production volume control.

  • The Batch command combines device operations like program, verify, security into a single command at any sequence.

  • Serial number generators are available as standard or customer-specific functions.

  • A Log file provides quality tracking.

Speed Comparison:

Device Updates:

• XELTEK updates software and device algorithm regularly.
• View the latest Device List.
• Download the current software version free of charge at Download Center.

Warranty Support:

• Standard 2 Years Warranty: Included with purchase of SuperPro 501S. Covers device update and repair.


Volume Production Solutions:

By operating multiple programmers simultaneously, you can use them in a high volume production environment. Cluster the programmers for flexible and easy volume production. Optional Compact Flash card is necessary to store user data, and device algorithm in stand-alone operation. For most operations, XELTEK recommends the 512MB size.

Warranty

Hardware & Electrical Specifications:

• Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic
• Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP,?/li>
• PC interface: USB2.0 (High speed)
• Stand-alone memory: Compact FLASH Card
• Power supply: AC Adapter: Input AC 90V- 250V; Output: 12V/2A
• Main unit: Dimensions 178(L) * 130(W) * 40(h) mm;
• Package: Dimensions 320(L) * 300(W) * 85(H) mm; Weight 1.8Kg

Items included:

• SuperPro 501S Programmer with a DIP48 Adapter
• AC adapter
• Software CD
• USB2.0 Cable
• User's Manual

Optional accessories:

• Adapter in various packages
• CF card for stand-alone operation

Click on Device Search link above to find the correct Xeltek programmer for your device.
