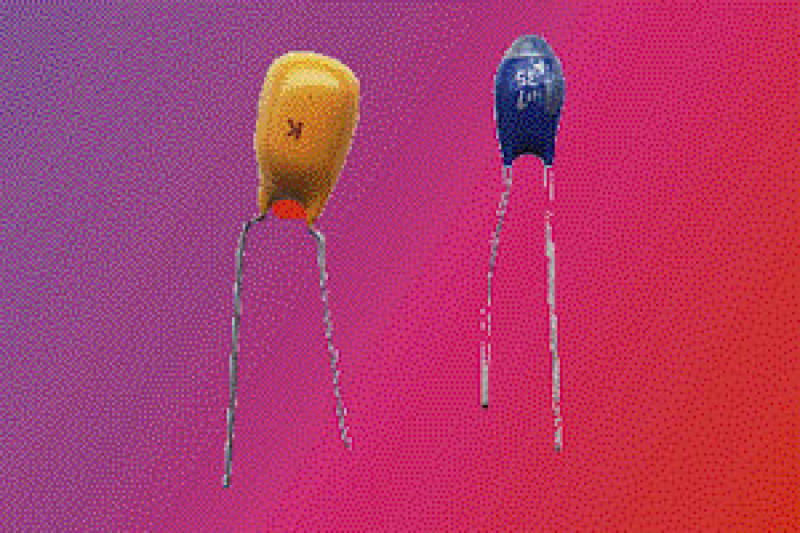

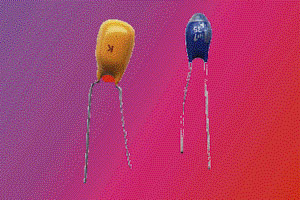

22µF, 35V Dipped Tantalum Capacitor

Individual Product Details:

Radial Leaded Dipped Tantalum Capacitor

Specifications

• Operating Temperature Range: 55 ~ +125 °C  >85 °C with rated voltage derating
• Rated Working Voltage Range: 6.3 ~ 50 V DC
• Nominal Capacitance Range: 0.1 ~ 330 µF
• Capacitance Tolerance: ±20% (±10% is available) at 120Hz, 20 °C
• Max. Leakage current: I=0.008CV or 0.5 µA, whichever is greater (I= Leakage Current(µA), C=Nominal Capacitance(µF), V=Rated Voltage(V)) After rated Voltage applied 2 minutes at 20°C

Features

• Specially designed of general purpose
• Highly reliable resin dipped type
• Excellent frequency and temperature characteristics
• Non-flammable epoxy resin (UL-94-V-O)
• RoHS compliant

Bulk 1 ea.
