4 Ch Digital Video Capture Card

Availability:

Available For Back Order

Item: TDR3004F

Quantity	Price
1	$ 59.000

Quantity : 0 In Stock

Add To Cart

Continue Shopping

Special Sale Price of $59.00!

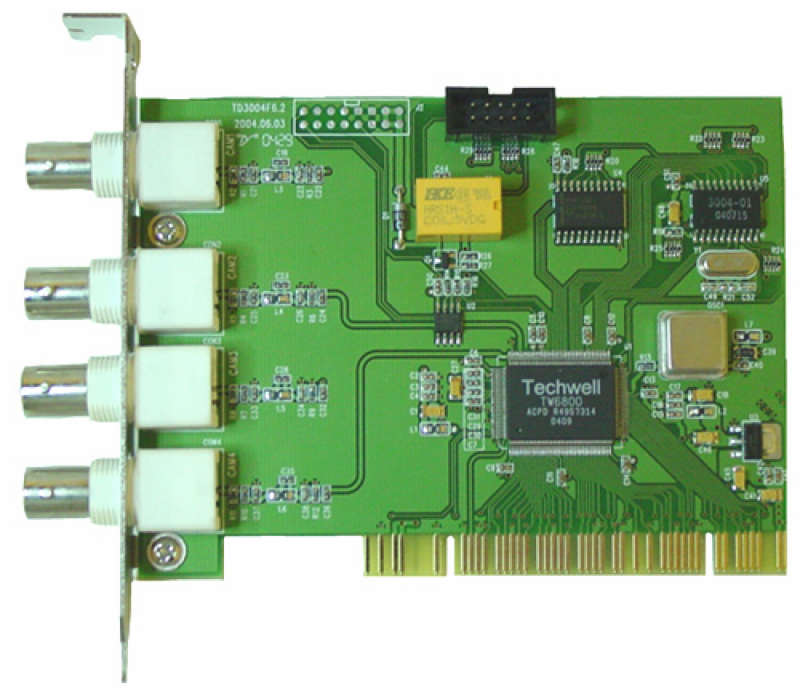

Turns any PC into a Digital Video Recorder!

Simply install the PCI card and it will display and/or record live video feedfrom up to 4 cameras per card!

Features

4 channels video input, the combined maximum display/recording rate is 25 fps under PAL format, and 30 fps under NTSC format.
One PC can use 4 cards simultaneously, with 16 channels video input as the maximum number.
1-16 channel video input, 1/4/6/8/13/16 screen display modes are available.
Multi alarm triggering method: sensor alarm, motion detection, video loss, and HDD sources shortage.
Support schedule recording mode.
Video compression format: MPEG4. 5 level recording quality options available and the recording frame rate range from 1 to 30 fps adjustable for each channel.
Recycling recording method available.
Support multi-channel playback, searching by time/date and recording events, images can be zoom/capture/save/print/backup.
Support remote surveillance and PTZ control through web browser, support dynamic domain name.

Specifications

Input Type	BNC x 4
Video Input	4 Cams
Audio Input	Support 1 Ch PC Audio
Video Output	1 Ch VGA Video Output
Display Rate	1 Ch VGA Video Output
Recording Rate	25 fps Total (PAL), 30fps Total (NTSC)
Compression Format	MPEG4
Video Resolution	320x240 (NTSC) A 352x288 (PAL)
Recorder Media	HDD, USB Disk, ZIP, CD-R/W
Record Mode	Motion/Sensor/Schedule/Manual
Network	TCP/IP
I/O Device	4 Ch Input, 1 Ch Relay Output
PTZ	Protocol Configurable, Remote Control Capability
Remote Software	Support Internet Explorer Web Browser

System Requirements

OS Supported Windows 2000/Windows XP

CPU Intel Pentium III 800 (minimum)

RAM 256M (minimum)

HDD 80GB (recommended)

VGA nVIDIA GeForce II MX200 32M

View Product Manual (PDF)

Download Driver Software Package(ZIP)
