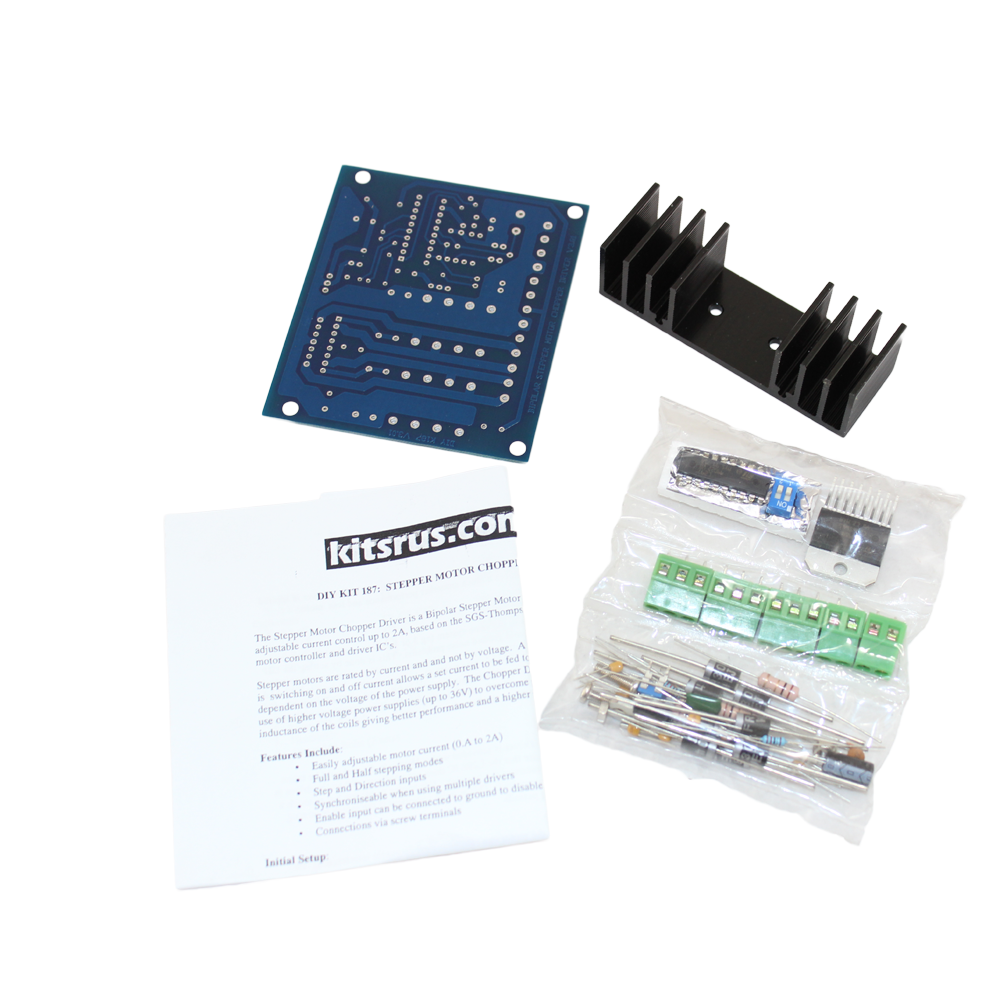

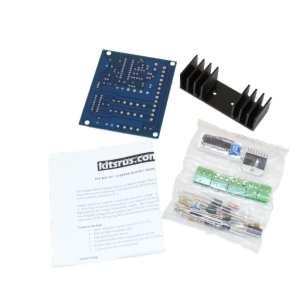

Stepper Motor Driver Kit

Item no. KIT 187
$9.75
Bulk Qty
Price
1+
$9.750
10+
$8.750
Qty
Out of stock
Product discontinued

The Stepper Motor Chopper Driver is a Bipolar Stepper Motor Drive with easily adjustable current control up to 2A, based on the SGS-Thompson L297 and L298           stepper motor controller and driver IC’s.

Stepper motors are rated by current and and not by voltage.  A chopper driver because it is  switching on and off current allows a set current to be fed to the coils and not be dependent on the voltage of the power supply.  The Chopper Driver also allows for the use of higher voltage power supplies (up to 36V) to overcome the effects of the inductance of the coils giving better performance and a higher top speed.

Schematics

Kit Manual
