ZyTemp Handheld Infrared Thermometer

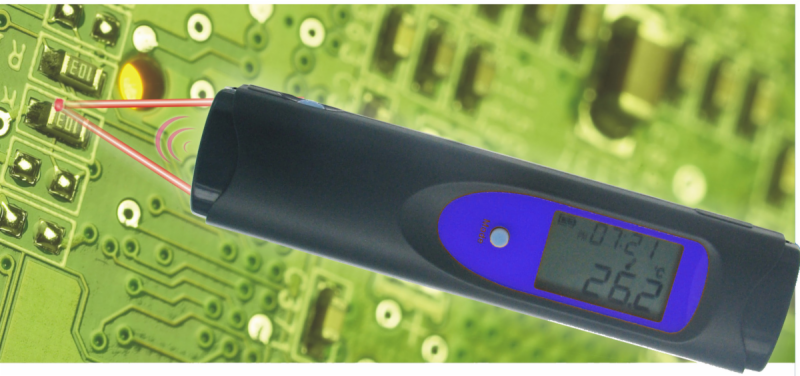

Featuring spot-on, dual-laser aiming, the TN01U close-focus, non-contact IR thermometer  measures the temperature of electronic components as small as 0.1-in. with pin-point accuracy. Compact and lightweight, the instrument provides a large LCD and a bright dual-laser aiming system that allows for accurate aiming. Features include a measurement spot size of 2.5-mm in diameter at distances up to 18 mm, measurement range from -55ºC to +220ºC,(-67-428 deg F) an accuracy of ±2% of reading or ±2ºC whichever is greater, a repeatability of ± 0.2ºC, display resolution of 0.1ºC, and a response time of 1s. Operating with two AAA batteries providing 18 hours of continuous use, the instrument measures 1” x 6.7” x 1.6” and weighs 4.5 oz.

SPECIFICATIONS:

Measurement Spot Size: 0.1-inch (2.5mm) diameter at 0.7” (18mm) distance

Temperature Measurement Range: -67º to 428 ºF (-55º to 220ºC)

Accuracy: ±2% of reading or ±2ºC (whichever is greater)

Repeatability: ± .2ºC

Display resolution: 0.1ºC

Response time: 1 second

Bright, built-in Class II dual-laser provides pinpoint aiming accuracy. Easy-to-read LCD display with built-in clock

• Emissivity (adjustable from 0.05 to 1.00) is preset for electronic component temperature applications
• Back-lit LCD display, select ºC or ºF, Auto Off
• Uses 2 AAA batteries providing 18 hours of continuous use
• Weight and Dimensions: 4.5 oz., 1” x 6.7” x 1.6”

This is the most advanced infrared thermometer manufactured today providing fast, accurate, non-contact component temperature

measurements for hardware designers, Test, QA and Service professionals.
