Powerful Low Cost Universal Device Programmer / Parallel

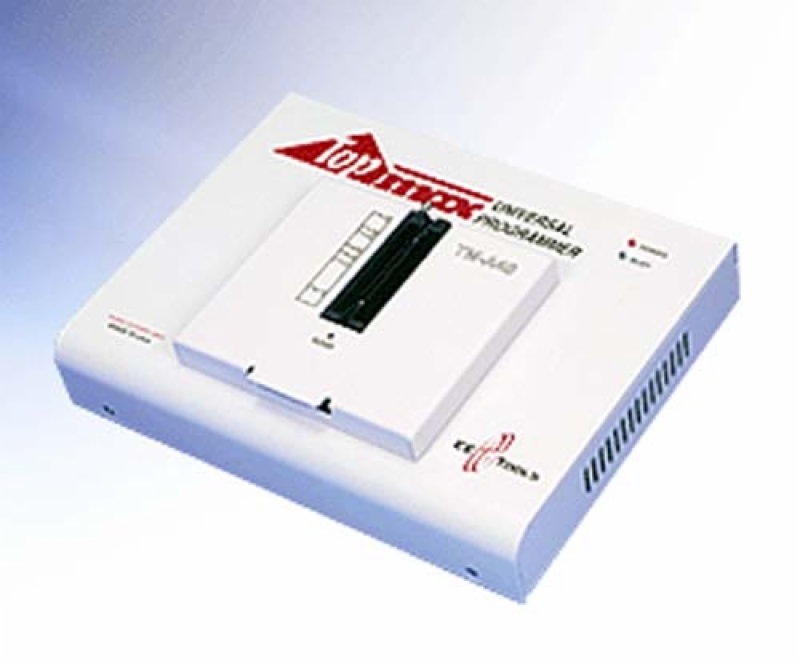

TopMax is one of the most reliable and long lasting instruments. It is software expandable universal device programming workstation that supports a wide variety of programmable devices in addition to the capability of testing digital ICs. The TopMax is a low-cost and high-performance programmer available today.

PRODUCT HIGHLIGHTS

•  Universal Device Programmer for 48-pin Textool Socket
• Test TTL, CMOS Logic Devices
• Test Dynamic, Static Memory Devices
• Support PC Parallel port
• Win 95 / 98 / NT / 2000 / XP
• Internal (110 ~ 250 VAC) switching power supply

DEVICES PROGRAMMED

• SAMSUNG NAND K5Axx / K5Dxx / K9Fxx / K9Kxx / KABxx Series
• EPROM / EEPROM / Flash EPROM / Serial E(E)PROMs
• Bipolar PROM
• PALs, PALCEs, GALs
• Dallas NV RAMs
• PEELs / EPLDs / SPLDs, CPLDs
• MACH series / MAX series
• 8741, 8742, 8748, 8749 series
• 87C51/52, -FA, -FB, -FC, '528, '652, '654, '54 89Cxx, 89Sxx, 89LVxx, 89Cxxxx series 87C751/752
• ST62xx series
• Xilinx XC72xx, XC73xx series
• WSI's PSD3xx series
• PIC12Cxxx, PIC16xxx, 17xxx series
• MC68705, MC68HC705, MC68HC711 series
• Z86Cxx, Z86Exx series

DEVICES TESTED

• TTL type 54, 74(S, LS, L, H, HC) series
• CMOS type 40, 45 series
• Dynamic Memory 4164 - 1MBit
• Static Memory 6116 - 6256
• User definable test pattern generation

KEY FEATURES

• Auto search device select function supports E(E)PROMs & Microcontrollers.
• Device insertion test identifies improperly inserted device before programming.
• Programs 8 devices at once (optional).
• Check for incorrect device insertion, backward, incorrect position, and poor pin contact.
• High-speed device function tests and user creatable test library.
• Device Operations: Read,Blank check, Program, Verify, Checksum, Data compare, Security, Auto(blank check-program-verify), Option Bit program.

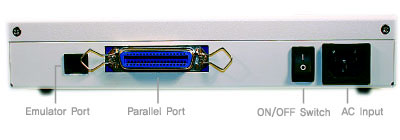

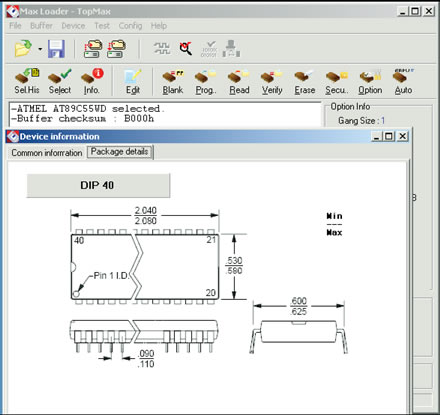

• Display programming parameters and optional bit information on the screen.
• Set device/buffer address ranges before programming devices.
• Auto Programming for production programming.
• User-changeable programming parameters.
• Built-in editor for both buffer date and test vectors.
• Support Binary and all hex files (POF and JEDEC, Intel Hex, Motorola S Records, Tekhex) with Load,Edit, and Save commands.
• Supports real 5, 3.3, 2.7, and 1.8 volt for programming power.
• Detects all pin locations for poor or damaged pin contacts.
• Internal universal power supply,110-240 VAC (no separate power supply required in foreign country).
• Current limiting protects hardware circuit from improperly inserted or defective chips and operation errors.
• 48-pin ZIF(Zero Insertion Force) socket accepts both 300mil and 600 mil DIP devices up to 48 pins.
• Hardware diagnostic program exams all 48-pin drivers before using programmer.

PROGRAMMING SPEED (100 % data in memory) min:sec.00
