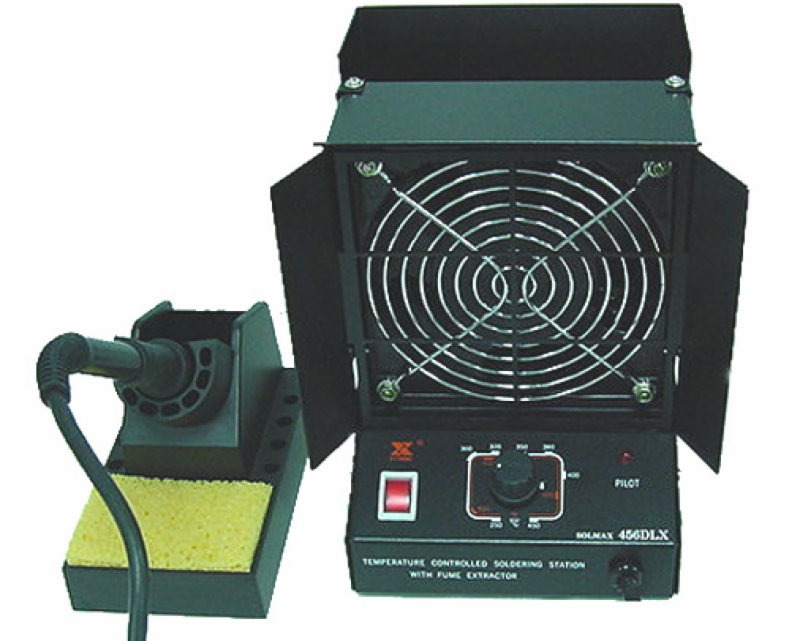

Analog Controlled Soldering Station with Fume Extractor

Individual Product Details:

Flux is an integral part of the soldering process to prepare the work surface. Composed of rosin-resin and mixed with an activator (halogen organic agent) that, as the temperature increases, generate noxious components such as salicylic acid and pinene commonly seen as smoke rising from the work area. High content ratios of resin generate phinol (C₆H₅OH) and the activators can emit hydrogen chloride (HCL) and other compounds. The US Government has occupational hazard standards controlling the permissible amounts of such compounds in the work area and the 456DLX, when used properly, help to meet these standards.

It offers a convenient and space saving method of removing noxious fumes from the work environment. Designed for use on the factory floor, in R&D or by the hobbyist, it provides an economical and efficient method to improve the work place by eliminating headaches, nausea and eye irritations often associated with exposure to solder fumes.

Developed with a high performance fan and an easy to replace activated carbon filter.The filter is made by joining specific foam with refined activated carbon. The activated carbon has a surface area of 1250 m square/gram and the total weight of the filter is 500 grams/meter square. The dust collection efficiency of the filter is 30% while the carbon filter can absorb up to 30% of its carbon weight in noxious components.

Circuit Specialists also carries a wide selection of solder and soldering tools.
