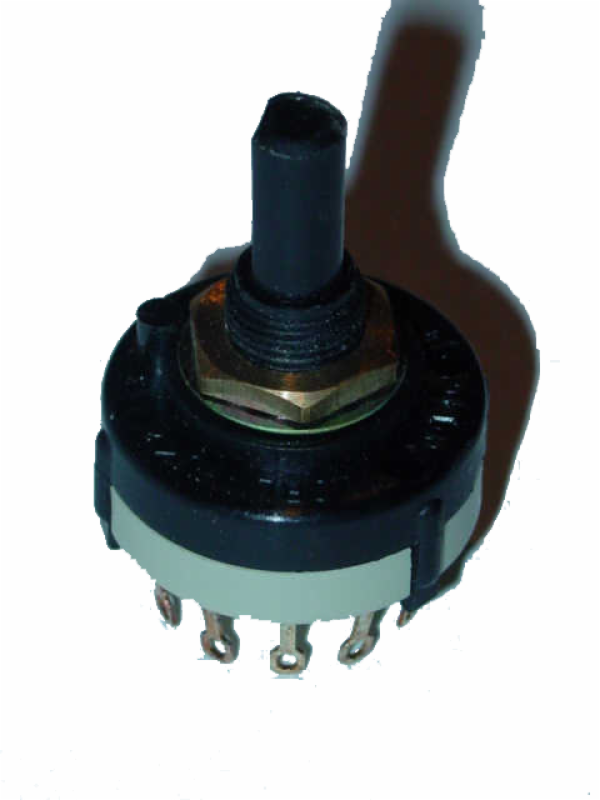

3 Pole 2-4 Position Hi-Rel Adjustable Rotary Switch

Fully enclosed, 1/4" D-shaft, 1/2" long. These Rotary Switches have adjustable stops that allows the user to determine the desired number of positions. Shorting (Make-Before-Break) .35 Amps at 110 VAC or DC at each contact.

Specifications:

• Type: hi-rel rotary switches
• Molding material: glass filled nylon
• Working voltage: 300VAC or 300VDC max.
• Breakdown voltage: 1,000VAC @ 25°C
• Current capacity: 5A continuous
• Index angle: 30°
• Contact rating: 150mA @ 250VAC or DC
• Contact resistance: 50m½ max.
• Contact life: over 10,000 operations
• Contacts: .0001" silver plating, fully enclosed
• Operating torque: 7.6Ncm min., 9.6Ncm max.
• End stop torque: 1.13Nm max.
• Use tang washer provided to adjust number of positions
• Shaft: 66 36/33% glass filled nylon, can be cut to any length
• Heat stabilized: A 1925 (ICI N°)
