120 Volt DC 3.0 Amp Linear Bench Power Supply

Item no. CSI12003X

120 Volt DC 3.0 Amp Linear Bench Power Supply

Item no. CSI12003X
30 In stock

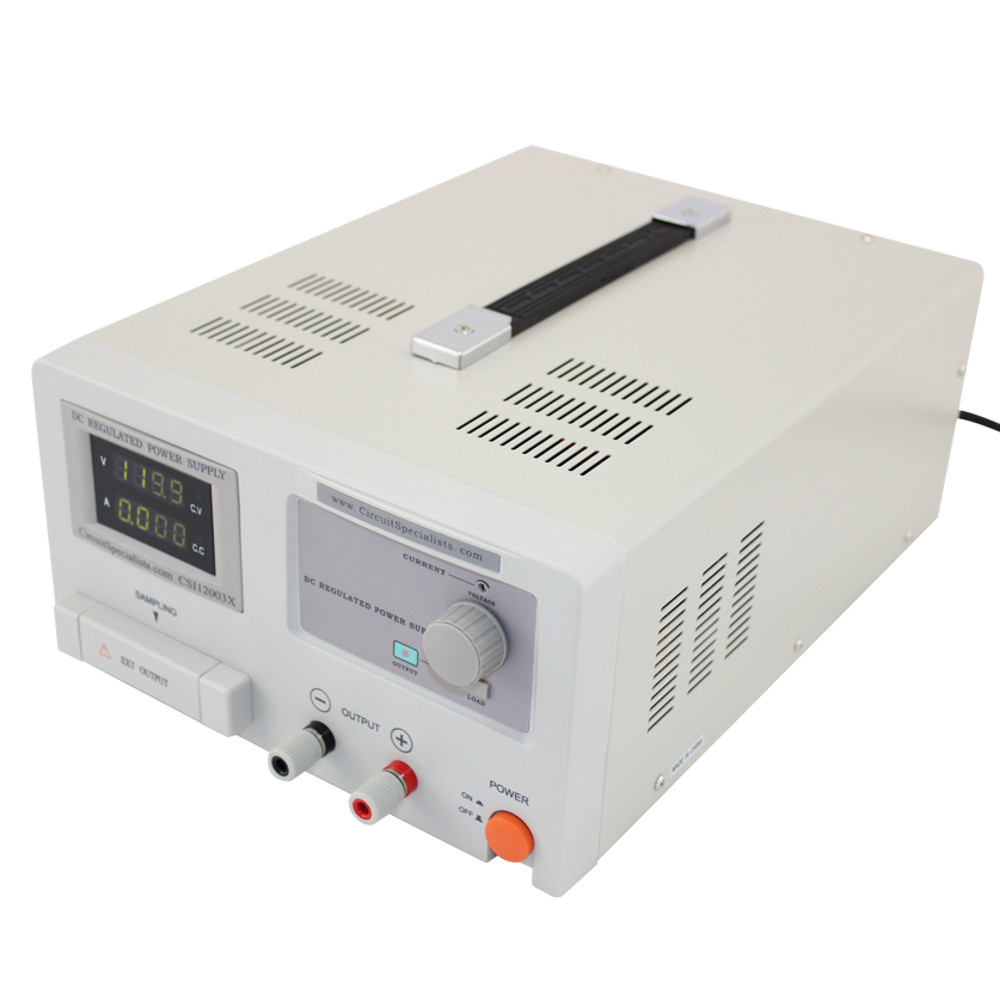

Circuit Specialists 120 Volt, 3.0 Amp DC Power Supply

The CSI12003X is a fully regulated benchtop linear power supply with adjustable current limiting.

The CSI12003X is a regulated linear bench power supply with adjustable current limiting. The large, clear LED display shows both volts and amps. The maximum current output can be preset by the user via a front panel screwdriver adjustment screw while the voltage is adjustable by a large front panel multi-turn knob for precise voltage settings. Output is by front panel banana jacks and there is also a covered terminal strip for remote voltmeter sensing at the load in cases where the load is a substantial distance from the output terminals. This high quality, affordable bench power supply provides highly accurate output while allowing the user to precisely control the current.

CSI12003X Power Supply Specifications

  • Variable voltage output: 0-120 VDC
  • Variable current output: 0-3 amps
  • Utilizes SMD technology
  • Pre-Settable Voltage & Current levels
  • Front Panel On/Off Switch
  • Large LED readout for Voltage & Current
  • S+ & S- Sampling terminals
  • Ripple & Noise
  • CV 5mV rms
  • CC 5mA rms
  • Input Voltage: 110V AC 60Hz
  • Dimensions WxHxD 265mm x 140mm x 360mm
  • Weight 12 kg, 26.5 lbs

Please Note: This power supply uses standard 110-120 volt, 60 Hz AC power and is supplied with a grounded power cable compatible with 110-120 volt power outlets as used in the United States. It is NOT compatible with 220-240 volt, 50 Hz power systems used in other countries unless a proper power adapter/converter is used (not included).

Due to safety concerns, Circuit Specialists does not stock power adapters or converters for power supplies at this time.

For more information, refer to the CSI12003X DC Power Supply's Owners Manual.

Helpful Links

Check out the Circuit Specialists blog and learn how to tell the difference between a linear and switching power supply.

Click here to see the CSI12003X's Schematics.

For most power supply applications you'll need a programmable DC load.

Product Details

Programmable: NO

Product Type: DC Power Supply

# of Outputs: 1
