2.4GHz RF shielded transceiver module with antenna

Item no. EZ2400

2.4GHz RF shielded transceiver module with antenna

Item no. EZ2400
Out of stock
Product discontinued

Ideal for setting up short range wireless links for remote control or data acquisition, these units operate in the license free industrial FCC bands and contains both transmit and receive in one easy to use module that is priced lower then most transmitters and receivers alone.

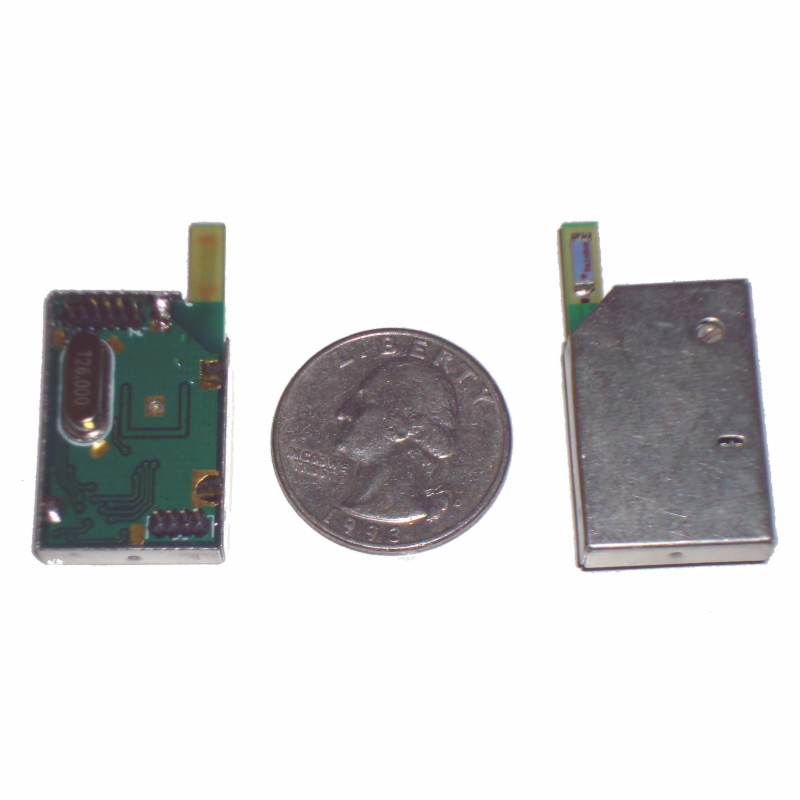

It features a sleek shielded enclosure and an integrated ceramic antenna optimized for the band of operation and are extremely easy to use featuring DATA-IN, RF OUT and RF-IN, DATA OUT operation.

  • DATA in RF out
  • RF in DATA out
  • Data rate: 1.2 to 10kbps
  • Output power: +10dBm
  • Sensitivity: -108dBm
  • Operating supply voltage: 5V
  • Frequency: 2.4GHz
  • Antenna included

Click HERE for a blog post with more information.

View product specs
