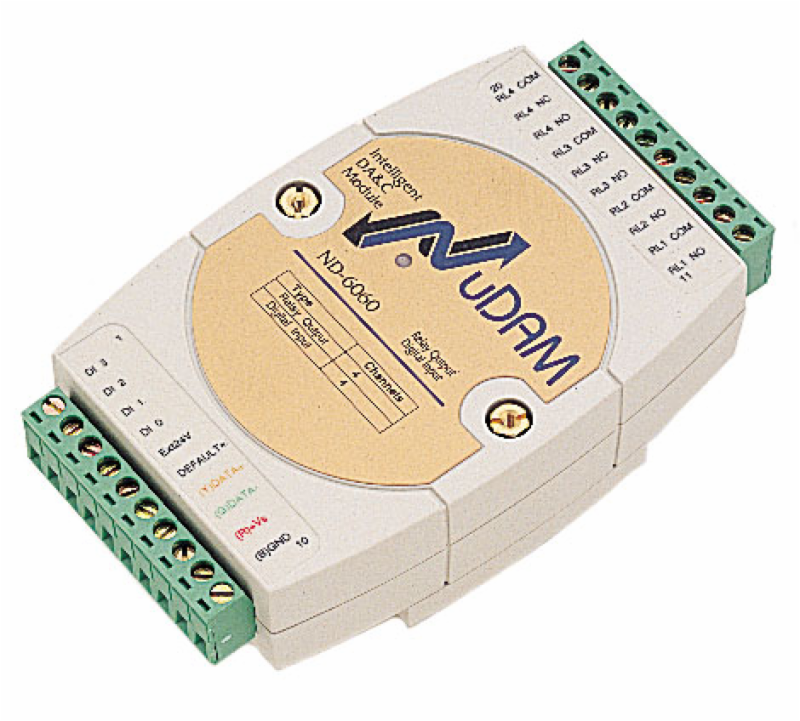

ND-6060 Relay Actuator with 4ch Digital Inputs from ADLINK Technologies

Relay Output

• Channels: 4 relay outputs
• Output Type: 2 Form C and 2 Form A
• Contact Rating:
• AC 0.6A/125V, 0.3A/250V
• DC 2A/30V, 0.6A/110V
• ON/OFF Interval Time: 3 ms/1 ms
• Breakdown Voltage: 500V AC (50/60 Hz)
• Expected Life: 10⁸

Digital Input

• Channels: 4
• Common External Voltage: +24V
• Input Type: Switch or Transistor

Power

• Requirement: unregulated +10V to +30V DC
• Power Consumption: 1.0W typical
