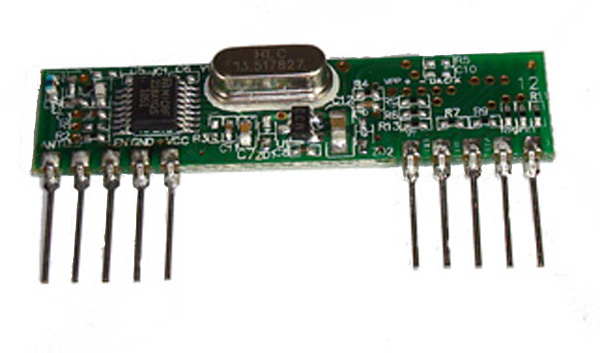

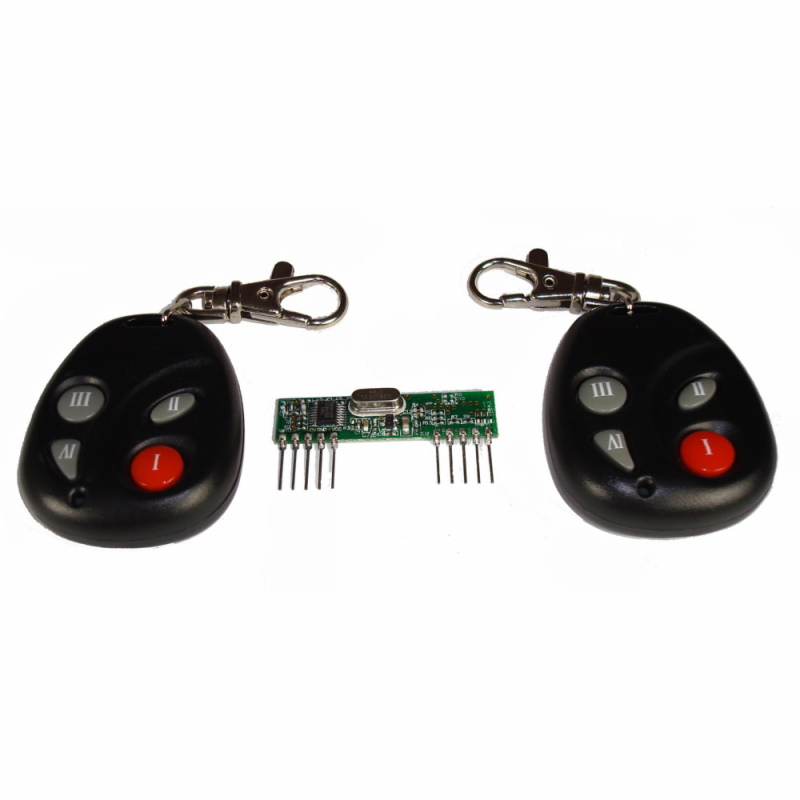

This set consists of two (2) self contained transmitters (Key FOBs) and one (1) receiver module.  System works in the 434 Mhz industrial band. This is a complete stand alone remote control system. No programming is required. The onboard encoders/decoder utilyze the KeeLoQ code hopping technology for maximum security and to allow multiple unit operation in the same vicinity. 4 buttons are provided on the transmitters and four separate output channels are provided on the receiver board. This powerful feature allows one system to control up to 4 different on/off functions.



Two transmitters are provided and additional transmitters can be purchased if the user wishes to utilize the maximum number of transmitters (4). The transmitters power output is 10 dBm. Receiver board sensitivity is -102dBm.



Typical applications include:
