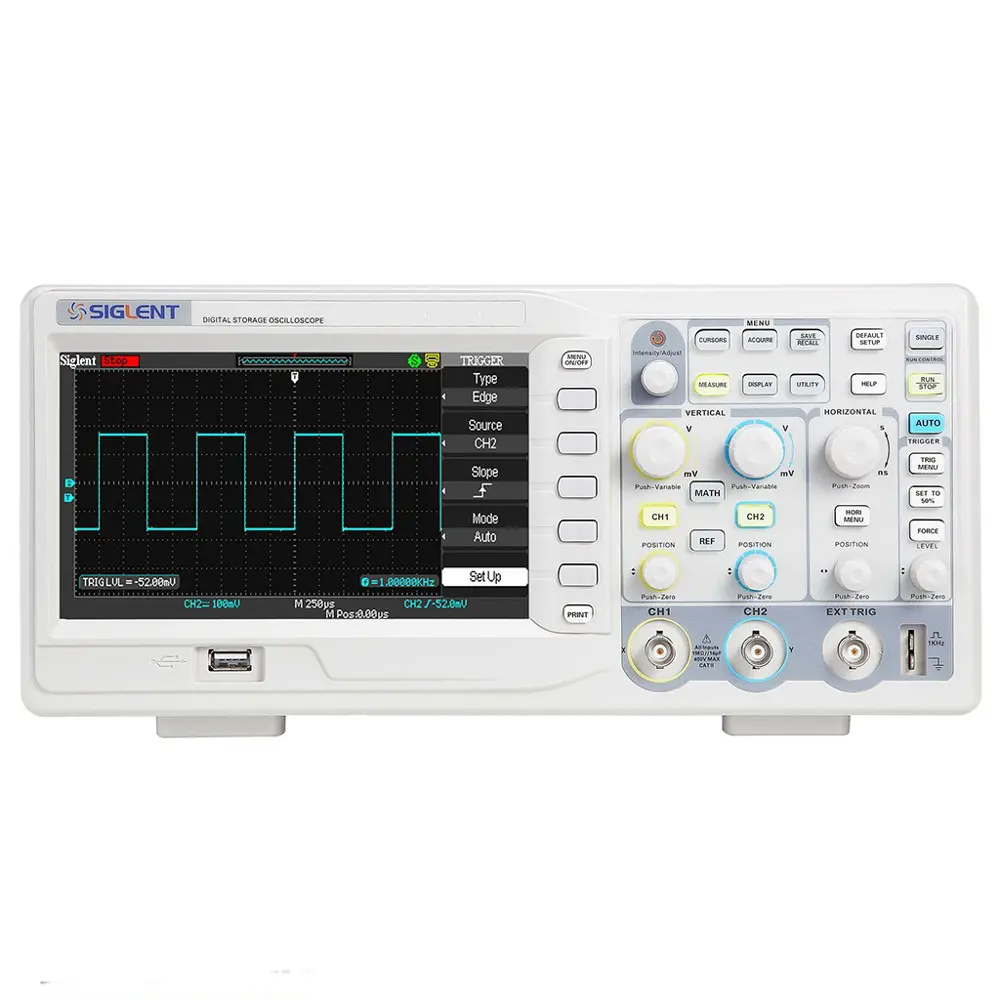

Siglent 100 MHz Digital Storage Oscilloscope

Shipped and Supported from the USA

This is an incredible oscilloscope value. Siglent is the worlds 2nd largest manufacturer of oscilloscopes ( behind Tektronix). They have recently introduced their brand to the USA. Here at Circuit Specialists, we are getting excellent feedback from our customers who have purchased the Siglent products ( oscilloscopes and ARB's)

Jack Ganssle - a well-known tech expert - raves about this scope in these videos, saying "it's a bargain at $379 (now $359) - I highly recommend this device!" (watch in part 2 where he even uses the word 'astonishing'!): Part 1 and Part 2.

View a video review of this product part 1

View a video review of this product part 2

3 Year limited warranty

Tips & Tricks: How to use your Siglent Oscilloscope Video Series

Features:

7''TFT-LCD display, 8*18 grid
Channels: 2CH+1EXT
1GSa/s samplinge rate, 2Mpts memory depth
6 digits hardware frequency counter, real time counting display
Support SCPI programming command control
Interface: USB Device, USB Host, RS-232, Pass/Fail
Unique digital filter and data recorder function
Embedded 12 languages, online help, one key storing and one key printing

Specifications:

Model: SDS1102CML
Bandwidth: 100MHz
Channels: 2CH+1EXT
Real time sampling rate: 1GSa/s
Equivalent sampling rate: 50GSa/s
Memory depth: 2Mpts
Rise time: < 3.5ns
Input impedance: 1MΩ‖17pF
Time base range: 2.5ns/div-50s/div
Scan: 100ms-50s/div
Vertical sensitivity: 2mV-10V/div
Vertical resolution: 8bit
Trigger source: CH1, CH2, Ext, Ext/5, AC Line
Trigger types: Edge, Pulse, Video, Slope, Alternative
Math Operation: +, -, ×, ÷, FFT
Digital filter: High pass, Low pass, Band pass, Band Stop
Max input voltage: ±400V (DC+AC Pk-Pk), CAT I, CAT II
Internal storage: 2 groups of reference waveform, 20 groups of setting, 10 groups of waveform
External storage: Bitmap save, CSV save, Waveform save, Setting save
Language: English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
Interface: USB Host, USB Device, RS-232, Pass/Fail out
Display: 7 inches(178mm) color TFT(480*234) LCD
Power: AC 100-240V, 45Hz-440Hz, 50VA Max
PC software: Can through the computer remote control oscilloscope, extraction waveform analysis data

Comparison Chart: Siglent SDS1102CML vs Rigol DS1000

Category	SIGLENT SDS1000CML		RIGOL DS1000E
Bandwidth	100Mhz	√	100MHz	×
Channels	2CH+1EXT	√	2CH+1EXT	√
Real time sampling rate	1GSa/s	√	1GSa/s	√
Equivalent sampling rate	50GSa/s	√	25GSa/s	×
Memory depth	2Mpts	√	1Mpts	×
Independent vertical channel controls	Supported	√	Not Supported	×
Vertical sensitivity	2mv/div-10v/div	√	2mv/div-10v/div	√
Vertical resolution	8bit	√	8bit	√
Trigger types	Edge,Pulse,Video,Slope,Alternative	√	Edge,Pulse,Video,Slope,Alternative	√
Trigger mode	Auto,Normal,Single	√	Auto,Normal,Single	√
Auto measurment	32 types	√	22 types	×
Record function	2500 frame	√	1000frame	×
Recorder function	Real-time recording slow signal	√	Not Supported	×
PictBridge print	Supported	√	Supported	√
Internal stroage	Setup,Waveform,CSV,Bitmap	√	Setup,Waveform,CSV,Bitmap	√
Interface	USB Host,USB Device,RS-232,Pass/Fail	√	USB Host,USB Device,RS-232,Pass/Fail	√
Display	7"?8×18?color TFT-LCD	√	5.7"?8×12?color TFT-LCD	×
Adjustable persistance	Off, 1/2/5 seconds, Infinite	√	Off, Infinite	×
Price	$359	√	$399	×

Users Manual

Service Manual
