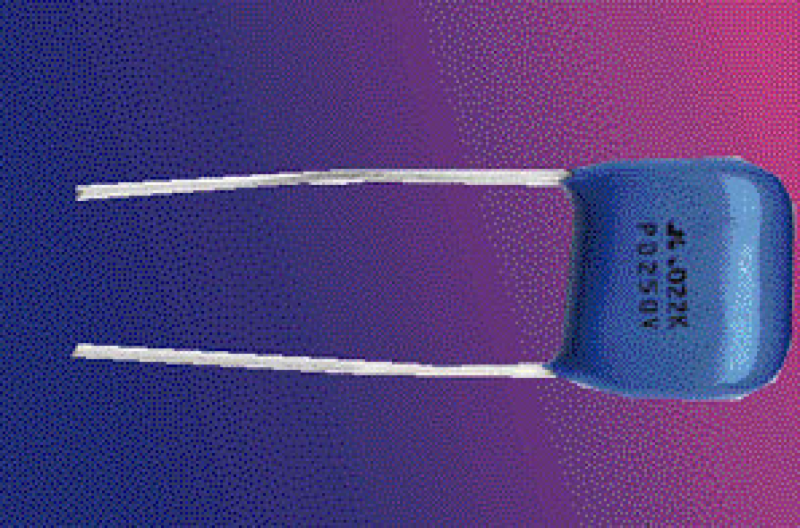

.015 μF, 250 WVDC, Polypropylene Capacitor

• Low dissipation factor
• High insulation resistance
• High stability of capacitance and DF versus temperature and frequency
• Self-healing properties
• Non-inductive

CHARACTERISTICS

• Operating Temperature Range: -40°C ~ +85°C
• Capacitance Tolerance: ±5%
• Standard Working Voltage (WV): 250
• Dissipation Factor: 0.1% max. (1KHz), 25°C
• Insulation Resistance: ≤.1µF is >30,000MΩ; >.1µF is >3000MΩ per µF

Capacitance: .015 μF
