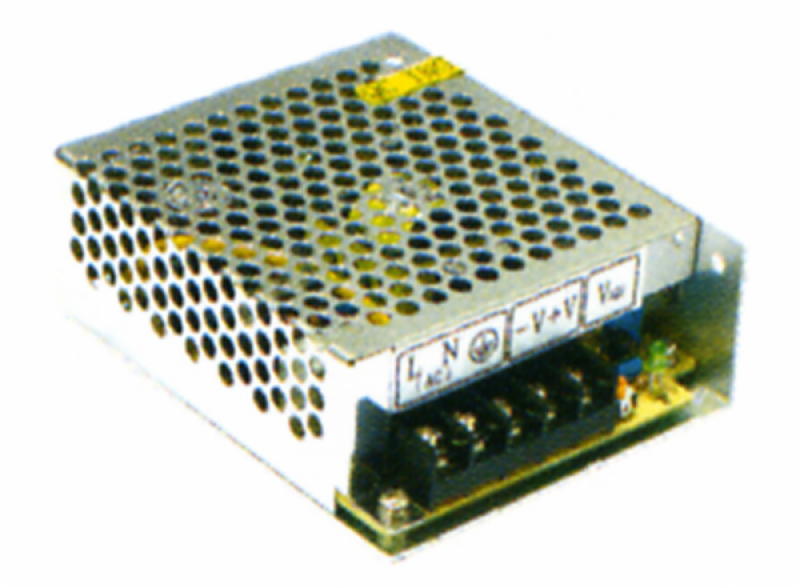

24 Volt Power Supply - 1.1 Amp Single Output

A 25W 24V/1.1A Highly Reliable, Universal AC input/full range single output power supply. They have the approval of UL and CE and come 100% full load burn-in tested and are protected with overload/over and voltage/short circuit. Also included is a 2 year manufacturer's warranty.

Brand: PowerSupply1
Complies with RoHS Directive
AC Input Voltage Range: 85-264VAC (120-370VDC)
Input Frequency: 47-63Hz
Inrush Current: Cold Start, 20A/115V, 40A/230V
Input Leakage Current: <0.7mA/230V
Line Regulation (Full Load): <± 0.5%
Output Voltage Adj. Range: ± 10%
Output Overload Protection: 110-150%
Output Over Voltage Protection: 115-150%
Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Rise Time: 50ms@full load (typical)
Hold Up Time: 20ms@full load (typical)
Operating temp.& humidity: -10°C to 50°C (14°F - 122°F), 20%-93%RH (non-condensing)
Storage temp.& humidity: -20°C to 85°C (-4°F - 185°F), 20%-93%RH (non-condensing)
UL Ref. Number: E258719
Safety Standards: GB4943, UL80950, EN60950
EMC Standards: GB9254, EN55022 classB, EN55024, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimensions: 3.94 x 3.28 x 1.4"
Cooling Method: Convection
