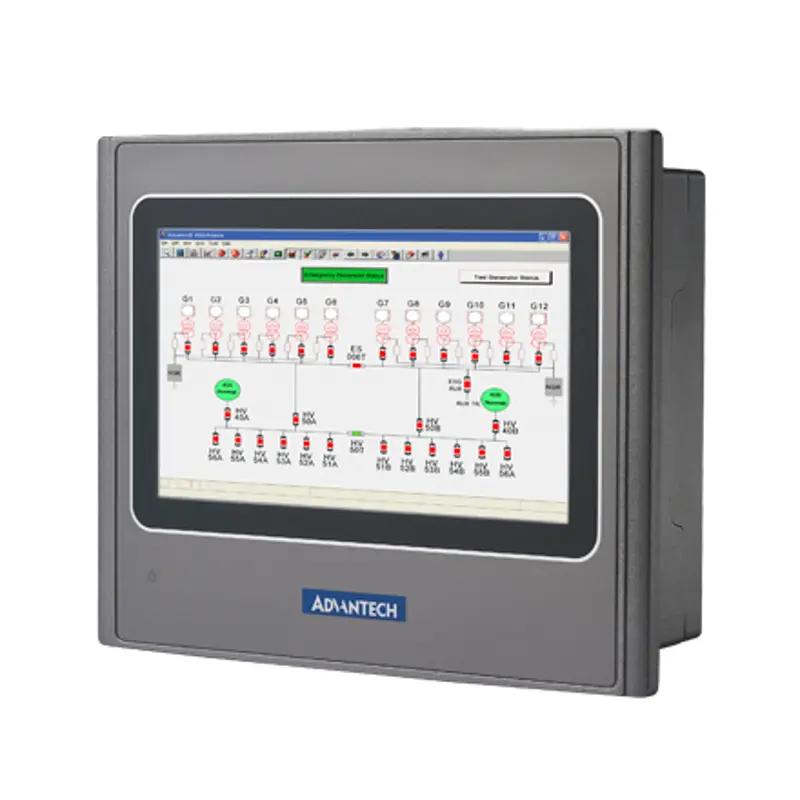

4.3" WQVGA Operator Panel with WebAccess/HMI Software, ARM9 200MHz, 32 MB(SDRAM), 8MB(NOR)

4.3" LCD size
Supports ARM9-based CPUs with 200MHz and 128MB flash memory
Supports RTC, battery backup RAM, and Ethernet-based operator panels
Supports runtime data downloads through Serial, Ethernet, USB
Supports adjustable brightness controls via touch panel
Reliable firmware for 24/7 operation
Supports Windows XP/7/Vista-based WebOP Designer development tool
Easy to switch one application to different LCD sizes in seconds
Supports vertical and horizontal application screen rotation
Supports over 300 PLC industrial communication protocols
Communicates with up to four types of devices
Panel mounting for machinery
Front panel is IP66 compliant

To fulfill the stringent standards required in automation market especially in packaging, label slitting, and robot dispensing, Advantech offers the WOP-2040T-N1AE for applications related to PLCs operation, motion/thermal controllers, inverters and sensors. It’s designed with various LCD sizes from 4.3" to 10.1, ARM 9-based RISC CPU's, 128 MB flash memory and HMI application software. The WOP-2040T-N1AE is bundled with WebAccess/HMI: a powerful software which is able to create HMI application solutions for labor-saving, manufacturing efficiency improved and visualized operation on every machine in factory.

Specifications:

General

Certification: CE, BSMI, CCC, UL, FCC Class A
Dimensions: (WxHxD) 130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43")
Cut-out Dimensions: 118.5 x 92.5mm (4.66" x 3.64")
Front Panel Thickness: 5mm
Operating System: HMI RTOS, WebOP Designer
Power Supply Voltage: 24VDC ±10%
Power Consumption: 5W
Enclosure Housing: Plastic
Mounting: Panel
Weight: (Net) 0.3 kg (0.66 lbs)

System Hardware

CPU: RISC 32bits, 200MHz
Battery Backup Memory: 128KB
Flash Memory: 8MB/ 8MB + 128M NAND flash
Power-On LED: Yes
Communication LED: No
Front USB Access: No

Communication Interface

COM1: RS-232/422/485 (DB9 Female)
COM2: RS-422/485 (5-Pin Plug Connector)
COM3: RS-232 (Com1: Pin5;7;8)
Ethernet (RJ45): 10/100-BaseT (for N1AE model)
I/Os

USB Client: Yes
USB Host: Yes
Micro-SD Slot: Yes (for N1AE model)

LCD Display and Touchscreen

Display Type: WQVGA TFT LCD
Display Size: 4.3"
Max. Resolution: 480 x 272
Max. Colors: 65,536 colors
Luminance: (cd/m2 ) 400
Backlight Life: LED, 20,000 hrs
Dimming: Adjustable by touch panel
Touchscreen: 4 wires analog resistive

Environment

Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
Humidity: 10 ~ 90% RH @ 40°C, non-condensing
Ingress Protection: Front panel: IP66
Vibration Protection: Operating, radom vibration 1 Grms (5 ~ 500 Hz)

4.3" WQVGA, ARM9 200MHz, 32 MB(SDRAM), 8MB(NOR)&128MB(NAND), Ethernet, Micro SD
