5 Volt Power Supply - 5.0A Single Output
Item #PS1-25W-05
$16.00
Bulk Pricing Discount
1
$16.00
10 - 99
$14.73
100 +
$15.65
Qty
216 in stock
Others also bought...
Overview

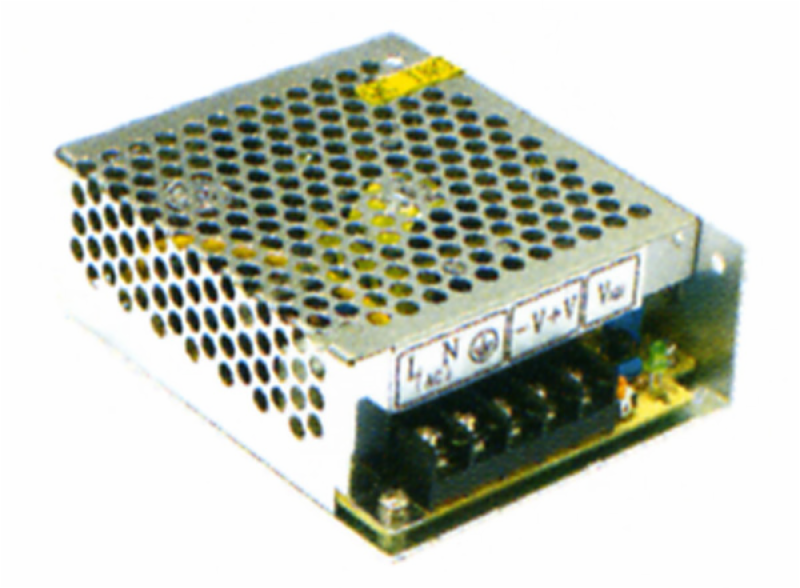

5 Volt Power Supply - 5.0A Single Output
A 25W 5.0V/5.0A Highly Reliable, Universal AC input/full range single output power supply. They have the approval of UL and CE and come 100% full load burn-in tested and are protected with overload/over and voltage/short circuit. Also included is a 2 year manufacturer's warranty. Dimensions: 3.94 x 3.28 x 1.4"
Specifications:
- Brand: PowerSupply1
- Complies with RoHS Directive
- AC Input Voltage Range: 85-264VAC (120-370VDC)
- Input Frequency: 47-63Hz
- Inrush Current: Cold Start, 20A/115V, 40A/230V
- Input Leakage Current: <0.7mA/230V
- Line Regulation (Full Load): <± 0.5%
- Output Voltage Adj. Range: ± 10%
- Output Overload Protection: 110-150%
- Output Over Voltage Protection: 115-150%
- Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
- Rise Time: [email protected] load (typical)
- Hold Up Time: [email protected] load (typical)
- Operating temp.& humidity: -10°C to 50°C (14°F - 122°F), 20%-93%RH (non-condensing)
- Storage temp.& humidity: -20°C to 85°C (-4°F - 185°F), 20%-93%RH (non-condensing)
- UL Ref. Number: E258719
- Safety Standards: GB4943, UL80950, EN60950
- EMC Standards: GB9254, EN55022 classB, EN55024, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
- Cooling Method: Convection
View our other 5 volt power supplies
Tech Specs
Programmable: NO
Product Type: Switching DC Power Supply
# of Outputs: 1
Documents
Warranty
2-year limited warranty
