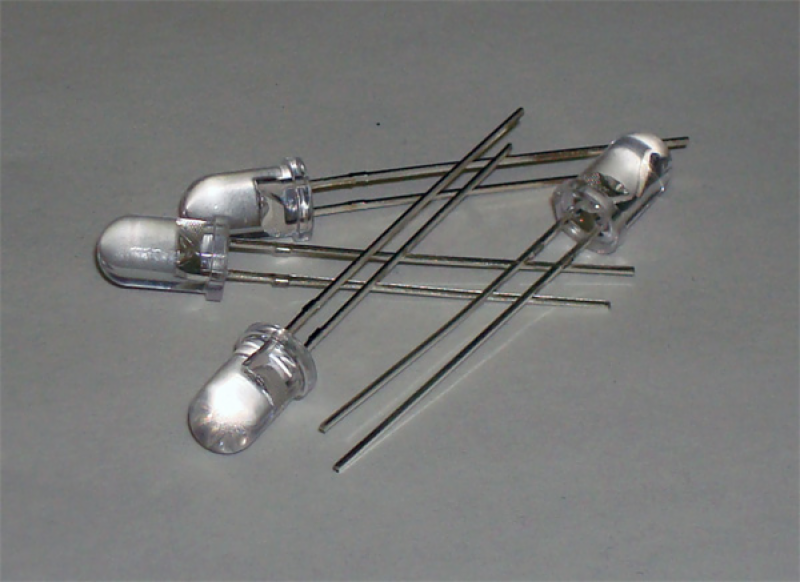

5mm InfraRed LED (5B5D10CRC)
Item #5B5D10CRC
$0.09
Qty
Estimated ship date: 12+ weeks
Others also bought...
Overview
| 5mm Water Clear Lens | ||||||||||
|
Tollerance +/-0.25 (0.1) Unit: mm (inch) |
Absolute Maximum Rating (Ta = 25oC | |||||||||
|
Forward Current IF (mA) |
Pulse Forward Current IFP (A) |
Power Dissipation PD (mW) |
Reverse Voltage VR (V) |
Operating Temprature (oC) |
Storage Temprature (oC) |
|||||
| 100 | 1 | 150 | 5 | -25o ~+70o | -25o ~+80o | |||||
| Electro-Optical Characteristics (Ta - 25oC | ||||||||||
|
Forward Voltage VF (V) @ IF = 100mA |
Reverse Current IR (uA) @ VR = 5V |
Wave Length (nm) |
Capacitance Ct (pF) @ f = 1MHz |
Radiand Intensity (m W/sr) |
View Angle (deg) |
|||||
| 1.5 | 10 | 940 | 25 | 20 | 50 | |||||
