No Clean Flux Paste

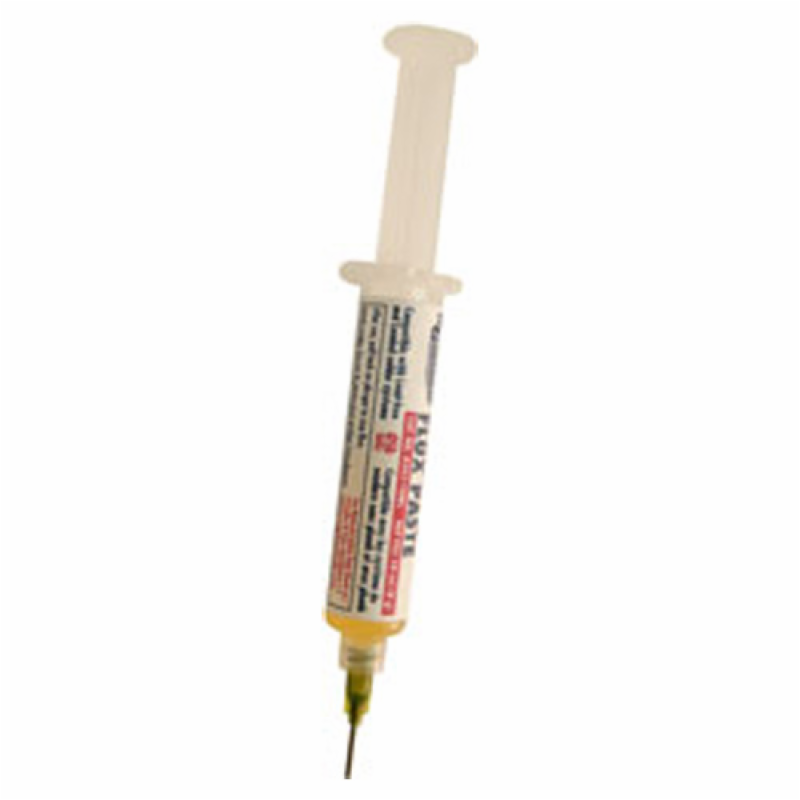

Convenient syringe dispenser ideal for touch up and repair of surface mount assemblies.
A unique mixture of high grade synthetic resin and thixotropic agents designed specifically for use with high temperature lead free and conventional Sn/Pb alloys. It provides the fluxing activity levels that promote fast wetting action and maximum wetting spread.
- Excellent wettability
- No clean
- Non-conductive, non- tacky residues
- Compatible with lead free & leaded solder systems
- Thixotropic paste
- RoHS compliant
Our flux paste is a no clean formulation therefore the residues do not need to be removed for most applications. If a Conformal Coating needs to be applied on to the board for moisture protection then removal of the residue is require. In such a case, you will require the use of a Flux Remover.
|Copper mirror||No removal of copper film||IPC-TM-650 2.3.32|
|Silver chromate||Pass||IPS-TM-650 2.3.33|
|JSTD-004||2.36 x 1013Ω||IPC-TM-650 22.214.171.124|
|Bellcore (Telecordia)||5.24 x 1012Ω||Bellcore GR-78-CORE 13.1.3|
|Electromigration||Pass||Bellcore GR-78-CORE 13.1.4|
Excellent wettability, no clean, non-conductive, non-tacky residues, compatible with lead free & leaded solder systems, thixotropic paste and RoHS compliant.
