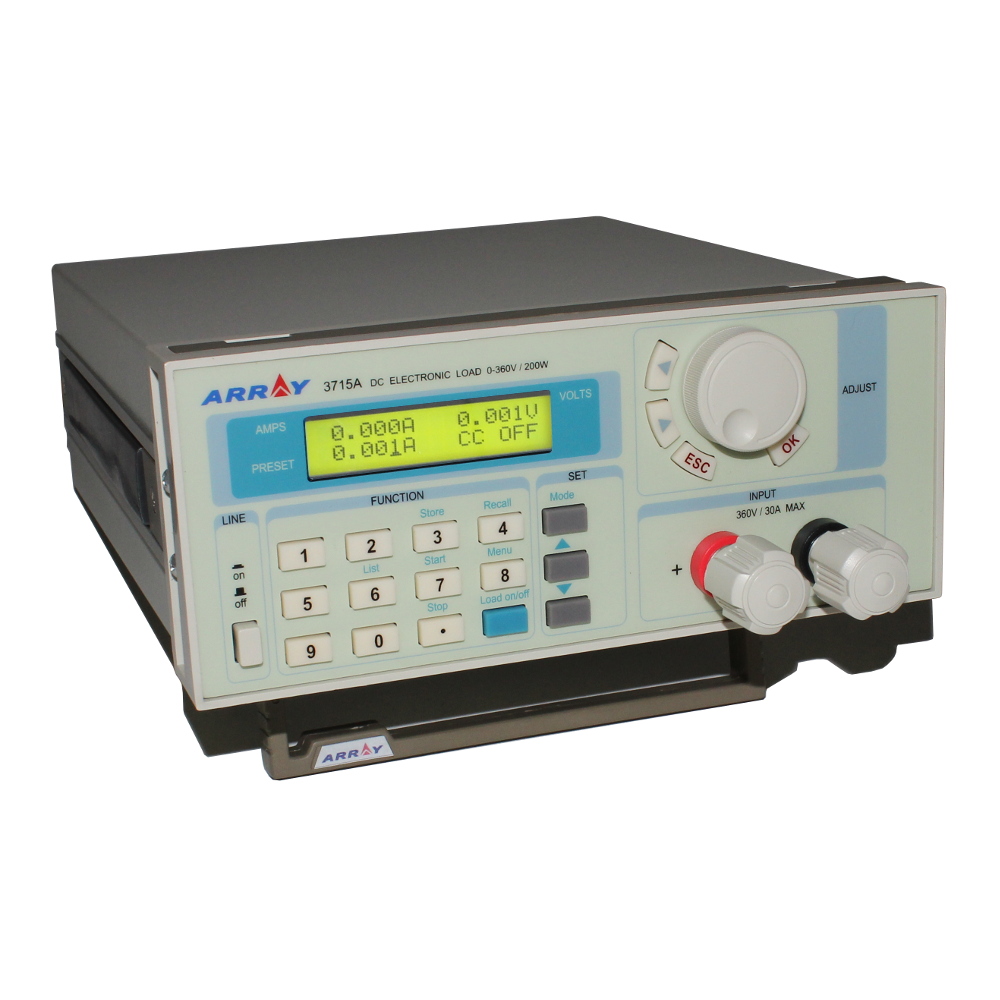

Array 3715A 360 Volt, 30 Amp, 200W Programmable DC Electronic Load

This programmable DC Electronic Load is capable of supporting up to 200 Watts of power. This DC Electronic load can be used with power supplies up to 360 Volts DC and 30 Amps. It includes a rotary selection switch as well as a numeric keypad which may both be used to input the maximum voltages, current and power settings. The 3715A DC electronic load is ideal for use in labs, r & d, battery maintenence facilities etc. , Ideal testing device for DC power supplies and high-capacity batteries. The 3710A Programmable DC load also features internal memory, and can also be connected to a PC, to implement remote control and supervision.

0~30 Amp / 0~360 Volt / 200 Watt
4 basic operating modes:

Constant Current
Constant Voltage
Constant Resistance
Constant Power

Minimum operating voltage is less than 2V at the load’s full rated current and zero voltage testing accessories are optional
Perfect protection assures high reliability in the most complicated test environment
Multiple groups of parameters and test sequences can be saved and recalled
Ruggedized structure, small size and convenient operation
Supports SCPI (Standard Commands for Programmable Instruments) and provides PC software
An external switching signal is realizable and it is suitable for flow line production

Specifications:
Current Voltage Power	0~30A 0~360V 200W @ 40°C
Minimum Operation Voltage @ Full Scale Current	2V
Current Range Resolution (Accuracy)	1 mA(0?3A)±0.2%±5mA 10 mA(0?30A)±0.2%±30mA
Voltage Range Resolution(Accuracy)	0-360V 1 mV(0?3.6A)±0.2%±3mV 10 mV (0?36A)±0.2%±30mV 100 mV(0?360A)±0.2%±300mV
Resistance Range Resolution Accuracy@ V>8V	0-2000Ω 0.001Ω 0.3%+0.002Ω
Power Range Resolution @P<100W @P≥100W Accuracy	0-200W 1mW 10mW 0.2%+600mW
Step Time Resolution Accuracy	500ms-99999s 500ms 0.2%+500ms
Step Number	1-9
Cycle	1-255
Store Capacity	4
Protection Features	OV, OC, OT, OP, RV
Current(rms/p-p) Voltage(rms)	3mA/30mA 5mV
Temperature Relative Humidity	0°-40° ≤85
Remote Interface	RS232
Programming Language	SCPI
Voltage Frequency	AC110V or AC220V±15% 48 to 63Hz
Net Weight	5kg
