CD4016 - Quad Analog Switch Quad Multiplexer
Item #CD4016
$0.38
Others also bought...
Overview

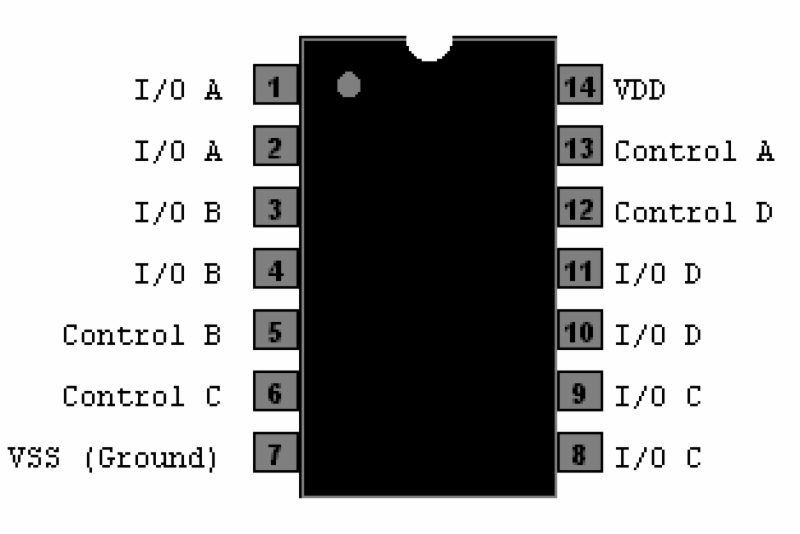

CD4016 - Quad Bilateral Switch
The CD4016BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066BC.
Features
- Wide supply voltage range: 3V to 15V
- Wide range of digital and analog switching: ±7.5 VPEAK
- “ON” Resistance for 15V operation: 400? (typ)
- Matched “ON” Resistance over 15V signal input:
?RON = 10? (typ) - High degree of linearity:
0.4% distortion (typ) - @ fIS = 1 kHz, VIS = 5 Vp-p,
VDD−VSS = 10V, RL = 10 k? - Extremely low “OFF” switch leakage:
0.1 nA (typ.)
@ VDD − VSS = 10V
TA = 25°C - This is a Thru-Hole Device.
Applications
- Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch - Digital signal switching/multiplexing
- CMOS logic implementation
- Analog-to-digital/digital-to-analog conversion
- Digital control of frequency, impedance, phase, and analog-signal gain
