19" 2U Rack Mount 5~15VDC 25Amp Switch Mode Power Supply with Fixed 13.8VDC Output

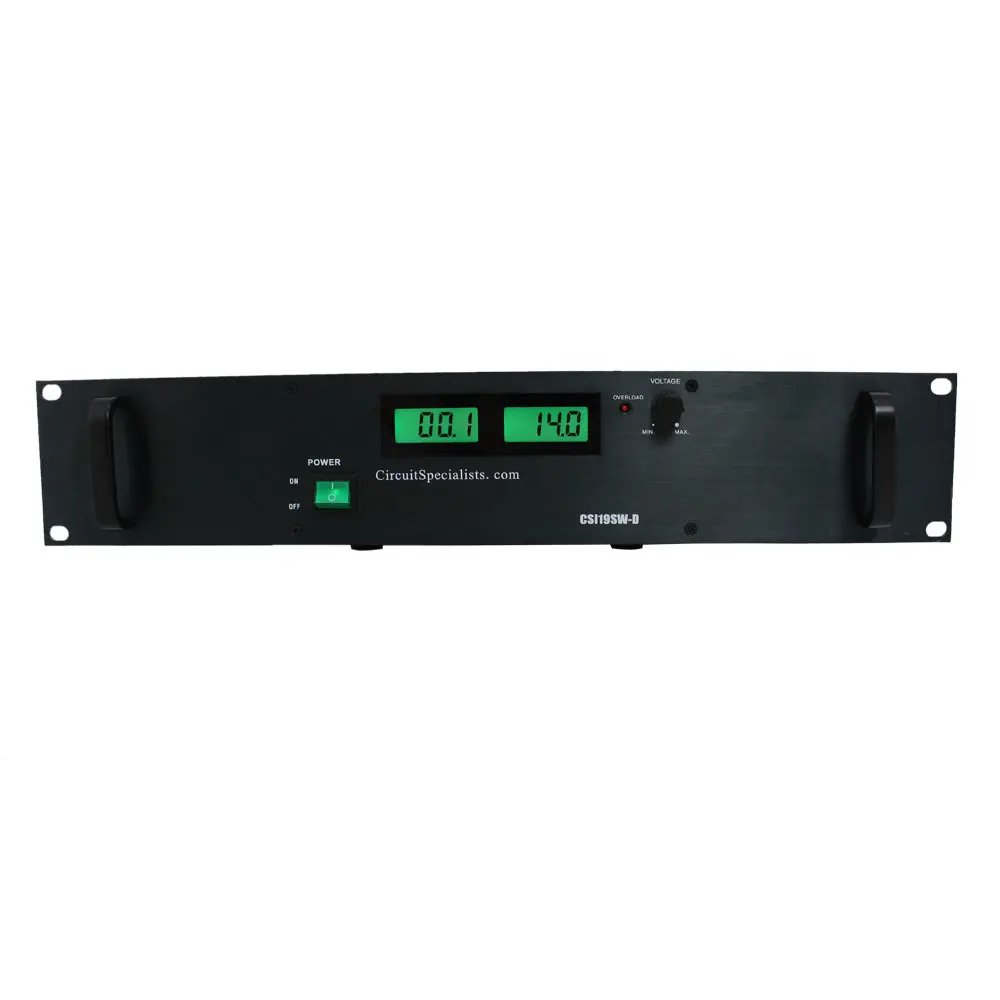

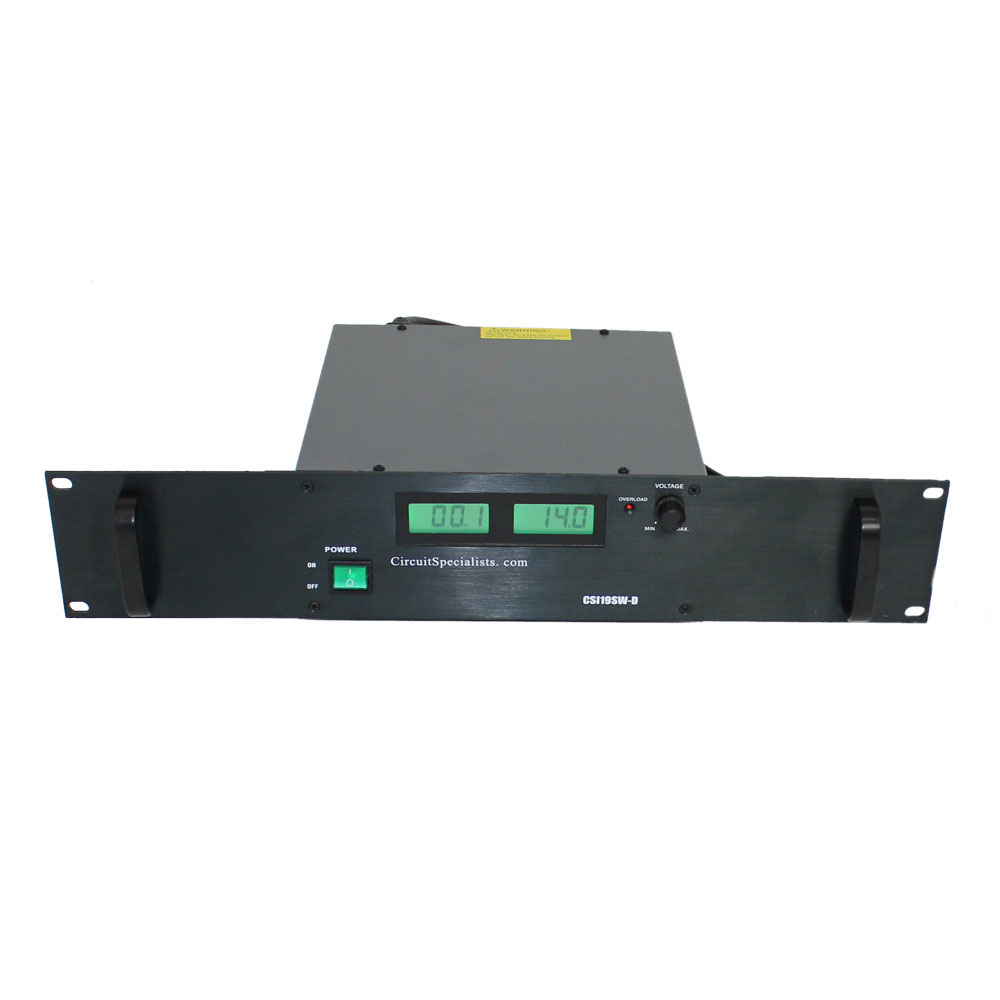

The CSI19SW-D is a 19" rack mount power supply. It features high current in a regulated switch mode power supply with built in over voltage protection. This 19" rack mount power supply is suitable for applications that require clean, stable DC power and is commonly used in telecommunications, audio and digital systems including transcievers and amateur radio systems. It incorporates active Power Factor Correction (PFC) to minimize harmonics back to the mains power supply that could interfere with other AC equipment in the cabinet rack. This is a 2U enclosure with an attractive brushed aluminum front panel.

Main Specifications:

Input voltage: 110VAC/60Hz +/- 10% *

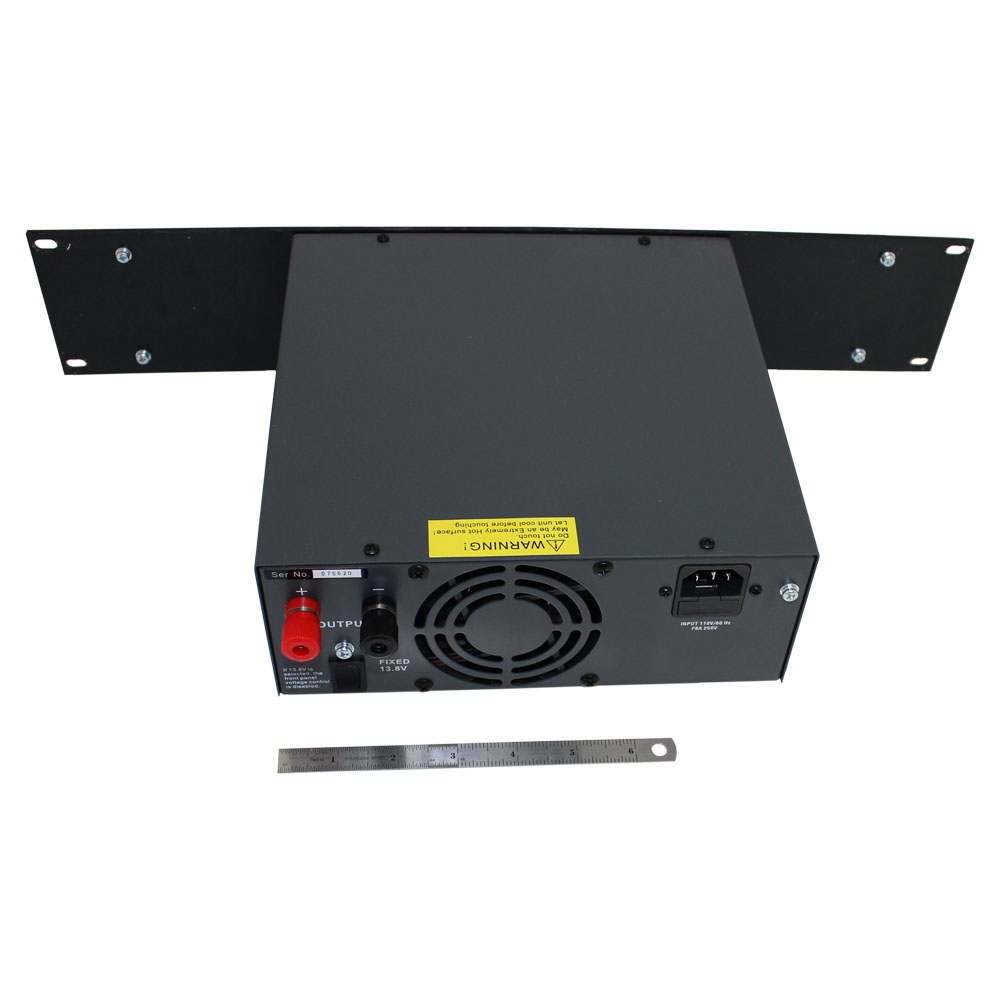

Output Voltage: Adjustable between 5 and 15VDC or selectable 13.8 VDC fixed from the back panel terminals
Output Voltage Regulation: less than 2%
Protection: Overload, Over Temperature, Short Circuit Protection and output overvoltage protection
Output Current: 25 Amps Max
Ripple & Noise: < 150mVp-p
Fuse: 110V: 8A
Dimensions220 x 89 x 225 mm
Weight 3.5Kg (about 8 lbs)

* Please Note: This power supply uses standard 110 Volt 60 Hz AC power. and is supplied with a grounded power cable compatible with 110 volt power outlets as used in the United States. It is not compatible with the 220~240 volt 50 Hz power system used in other countries unless a proper power adapter/converter is used (not included).

Circuit Specialists does not stock power adapters/converters at this time.
