Hot Air Station, CPU controlled, 16 nozzle bundle at special price

Item no. CSI825-DELUXE

Hot Air Station, CPU controlled, 16 nozzle bundle at special price

Item no. CSI825-DELUXE
$259.00
2 In stock

Hot Air Station, CPU controlled, 16 nozzle bundle at special price

This DELUXE version of the CSI825A hot air station includes an additional set of 16 Hot Air Nozzles and saves you HUNDREDS of $Dollars$ compared to buying them individually!!

MicroProcessor Controlled
Includes a Very Handy Vacuum Pick-up Wand
Features Temperature Sleep Mode
INCLUDES an ADDITIONAL SET of 16 NOZZLES as seen below!

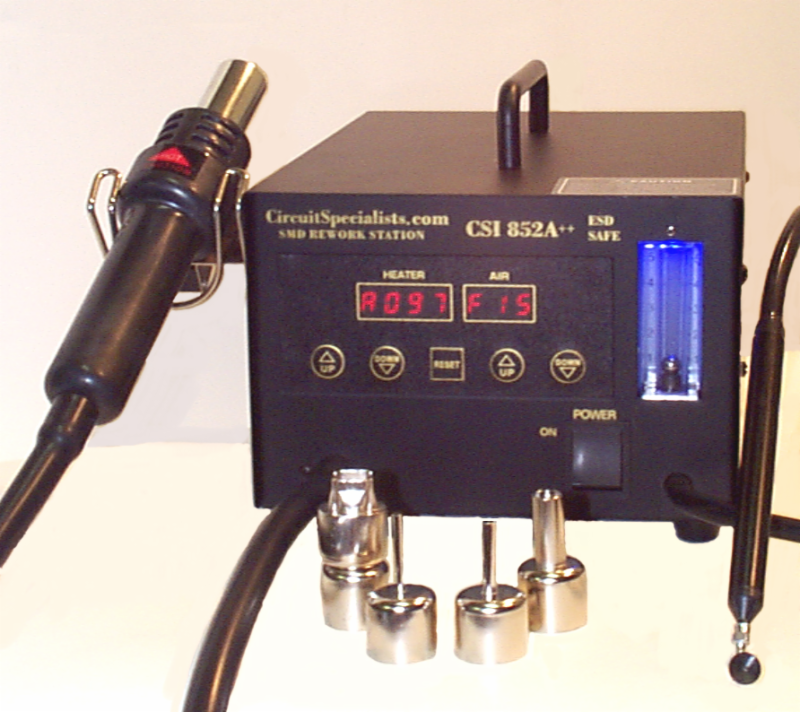

What every shop or lab needs to deal with todays SMT designed circuit boards. O.E.M. manufactured just for Circuit Specialists Inc., so we can offer the best price possible! A multi-technology assembly and repair hot air station. The heater and air control system is built-in and adjusted by the simple touch of the front keypad for precise settings. Temperature range is from 100 degC to 480 degC / 212 deg F to 896 deg F, and the entire unit will enter a temperature drop state after 15 minutes of non-use for safety and to eliminate excessive wear. Simply lift the handle off the rest, and you will be back to your original settings in no time. The air controlled pick-up tool is easily accessible and ideal for quick and secure removal of IC's without damaging them. It comes with a replacement wand neck and 4 suction cups of various sizes to accommodate different IC's. Air control for the station is monitored by an easy-to-read airflow meter.

Comes complete with nozzles.As seen in the photo, you already get a 2.5mm (straight single, item #A1124 ), 4.4mm (straight single, item#A1130 ), plus an 8mm & 10mm single general purpose type for large area heat targeting or even shrinking heat shrink tubing.(not shown on the nozzle chart below). With this Deluxe version of this hot air station you also get an additional set of 16 nozzles as seen in the chart below to cover any soldering need that may arise! This is a fantastic value that saves you hundreds of dollars!

Circuit Specialists stocks a wide range of thot air nozzles as well as a replacement heating element, hot air and suction wands for this unit (see the `Related Products' section at the bottom of this page)

General Specifications:

  • CPU Controlled
  • Built-in vacuum parts handling wand
  • Air Pump: Diaphragm special-purpose lathe pump
  • Capability: 23L/min (Max)
  • Temperature Range: 212°F to 896°F (100°C~480°C)
  • 15-Minute Stand-By temperature "sleep" mode
  • Power:110/120 VAC, 320 W maximum

Users Manual

  • CPU Controlled
  • Built-in vacuum parts handling wand
  • Air Pump: Diaphragm special-purpose lathe pump
  • Capability: 23L/min (Max)
  • Temperature Range:100°C to 480°C / 212°F to 896°F
  • 15-Minute Stand-By temperature "sleep" mode
  • Power:110/120 VAC, 320 W maximu

Click to view the standard CSI825A


Warranty

1-year limited warranty

30 day satisfaction guarantee
Satisfaction Guarantee
Your satisfaction is important to us. If you're not satisfied, return the product within 30 days of purchase for a refund or credit.

Return policy
One year warranty
Limited Warranty
Circuit Specialists wants you to be happy with your purchase. This product comes with a one-year limited warranty.

Warranty policy
Free tech support
Free Tech Support
Circuit Specialists offers free technical support for the life of your product. Please call our technical team with any questions.

1-800-528-1417 ext. 3
Mon - Fri: 8:00 AM - 5 :00 PM (MST)
