Compact Hot Air Station

Hot Air Station with Soldering iron

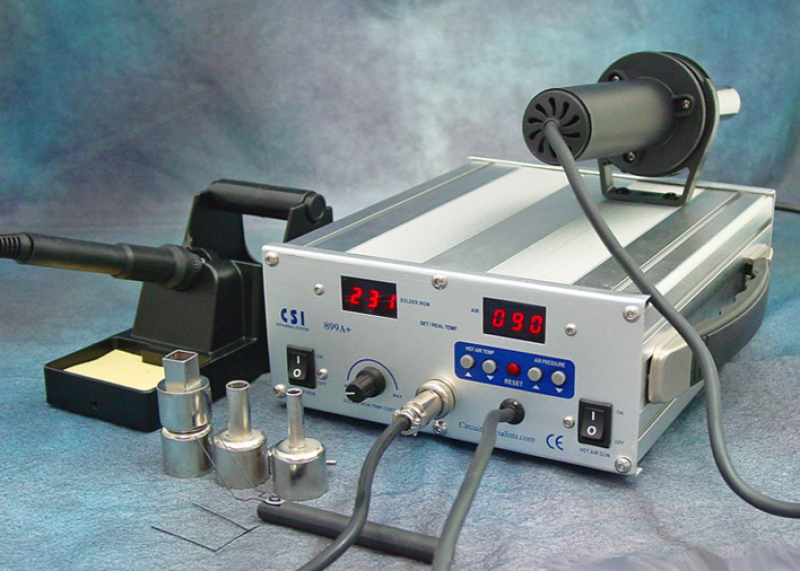

The CSI899A+ hot air station is best suited for reworking small chip caps and plastic connectors. It has microprocessor controlled hot air and soldering for stable and precise temperature and airflow. The hot air is generated by a turbine motor which helps produce a constant and even volume of air suitable for handling BGA, PCB’s plastic connectors as well as large surface shield and covers. The digital display make it easier for the user to determine the proper settings while using this hot air station. The whole unit occupies a small footprint allowing you to place it almost anywhere on your rework bench. Also included is a device pick up tool to lift heated devices away from the pcb and 3 nozzles. Two Straight Single A1196 & A1197 nozzles and an A1010 BGA nozzle. Just one of many peices of soldering equipment that Circuit Specialists stocks in the USA.

Circuit Specialists stocks a wide range of thot air nozzles for this unit (see the `Related Products' section at the bottom of this page)

CSI899A+ Hot Air Station Specifications:

• Power Consumption: (Iron) 35W / (Hot Air) 500W
• Iron Output Voltage: 24V
• Temperature Range: (Iron) 392°F~896°F (200°C~480°C) / (Hot Air) 212°F~896°F (100°C~480°C)
• Motor Type: Turbine

Users Manual

Manual

1-year limited warranty
