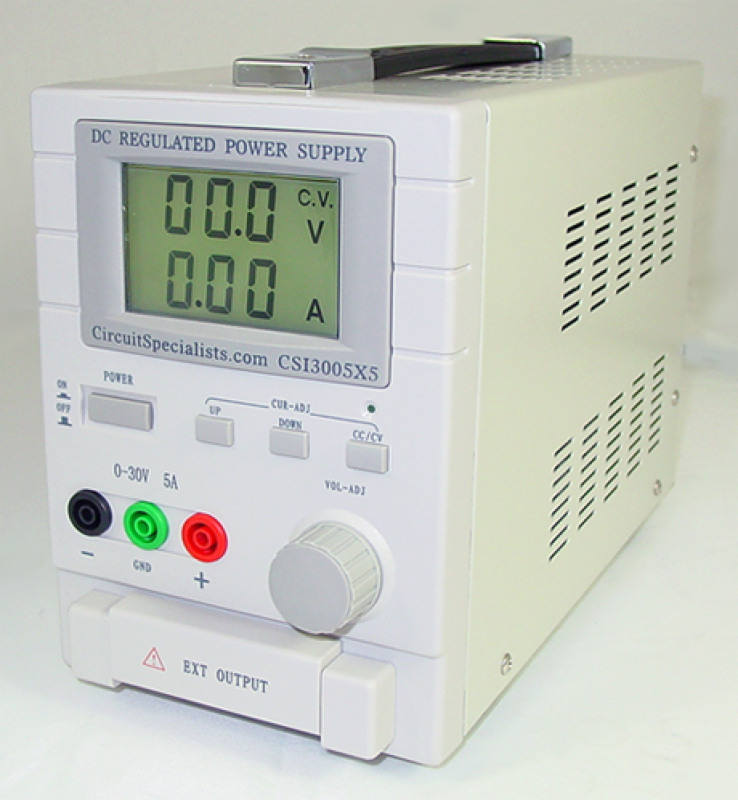

5 Amp Bench Power Supply 0-30 VDC Plus 5V Fixed

Item no. CSI3005X5

Manual »

0-30VDC 0-5A / 5VDC 1A, Dual Output Bench Power Supply

The CSI3005X5 is a high stability LCD digital read-out bench power supply featuring constant voltage and current outputs. Short circuit and current limiting protection is provided. SMT PC boards and a built-in cooling fan help ensure reliable performance and long life.The perfect choice for lab and educational use. The voltage is adjustable from 0-30 VDC. Output up to 5 Amps. A 1A, 5VDC fixed output is on the rear panel for additional versatility. This benchtop power supply is a terrific value & compares to bench power supplies costing twice as much.

CSI3005X5 Bench Power Supply Features

SMD adhesive sheet element technology for internal pcb construction
Attractive green large LCD display
Built in cooling fan
Multiloop high precision voltage regulation
Progressive current regulation
Dual terminal system. Safety test style or expandable screw terminals
Overload protection circuit
Low ripple voltage: <1mV P-P
Output polarity: positive or negative
Rugged reinforced metal frame construction
Source effect: 5 x 10(-4) =2mV
Load effect: 5 x 10(-4) =2mV
Ripple coefficient: <250uVStepped current: 30mA +/- 1mA

Includes:

(1) Banana to Aligator Cable
(1) Spade to Open End Cable

* Please Note: This power supply uses standard 110 Volt 60 Hz AC power. and is supplied with a grounded power cable compatible with 110 volt power outlets as used in the United States. It is not compatible with the 220~240 volt 50 Hz power system used in other countries unless a proper power adapter/converter is used (not included).

Circuit Specialists does not stock power adapters/converters at this time.

Users Manual

Schematic

See our other benchtop power supplies

View our programmable DC Loads

Product Details

Programmable: NO

Product Type: DC Power Supply

# of Outputs: 2
