Fluke True-RMS Digital Multimeter with Thermometer

Fluke True-RMS Digital Multimeter with Thermometer

Accuracy and diagnostic functions for maximum industrial productivity

The new Fluke 87V digital multimeter has improved measurement functions, trouble-shooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution and electro-mechanical equipment.

The 87 Series V operates very similar to the classic 80 series, but with more problem solving power, safety, convenience and impact protection.

The new 87 series V are independently tested to comply with the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V/CAT III 1000V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.

The Fluke 287V Digital Multimeter Multimeter Includes:

• TL75 test leads
• AC72 Alligator Clips
• Holster
• 9V battery (installed)
• Getting Started Manual
• CD with detailed manual
• 80BK temperature probe

Features:

Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
Large digit display with bright, two-level backlight makes the 80- Series V significantly easier to read than older models

Electrical safety

All inputs are protected to the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V and CAT III, 1000 V. They can withstand impulses in excess of 8.000 V and reduce risks related to surges and spikes.

Correctly measure pulse-width modulated motor drive signals.

Until now, there hasn't been a multimeter able to accurately measure adjustable speed drives. But the new Fluke 87V is designed specifically to handle these complex signals. Think of the potential productivity you'll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time.

• Unique function for accurate measurements of noisy pulse-width modulated AC voltage. Measures correctly at the ASD and at the motor terminals
• Accurately measure the frequency (motor speed). Frequency measurement not affected by the ASDs carrier frequency
• Measure AC current with an optional current clamp accessory
• Compare reading from the 87V with the display on the ASD
• Special shielding blocks high frequency, high-energy noise generated by large drive systems

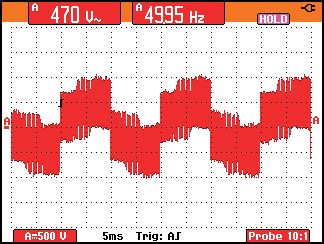

Complex PWM drive signals are not a problem for the Fluke 87V

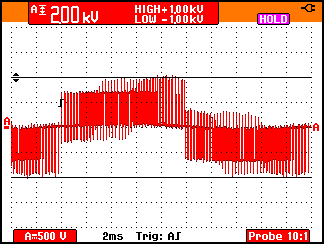

Pulse-width modulated detail of 50 Hz motor drive output voltage. 1000 V, 50 micro-second pulses can cause erratic behavior in some test equipment.

Specifications of the Fluke 87-5 Digital Multimeter
Voltage DC	Maximum Voltage: 1000V Accuracy: Fluke 83 V: ±(0.1%+1)   Fluke 87 V: ±(0.05%+1) Maximum Resolution: Fluke 83 V: 100 µV   Fluke 87 V: 10 µV
Voltage AC	Maximum Voltage: 1000V Accuracy: Fluke 83 V: ±(0.5%+2)   Fluke 87 V: ±(0.7%+2) True RMS AC Bandwidth Fluke 83 V: 5kHz   Fluke 87 V: 20kHz*   *with low pass filter; 3db @ 1kHz Maximum Resolution: 0.1 mV
Current DC	Maximum Amps: 10A (20 A for 30 seconds maximum) Amps Accuracy: Fluke 83 V: ±(0.4%+2)   Fluke 87 V: ±(0.2%+2) Maximum Resolution: Fluke 83 V: 0.01 mA   Fluke 87 V: 0.01 µA
Current AC	Maximum Amps: 10A (20 A for 30 seconds maximum) Amps Accuracy: Fluke 83 V: ±(1.2%+2)   Fluke 87 V: ±(1.0%+2) True RMS Maximum Resolution: 0.1 µA
Resistance	Maximum Resistance: 50 MΩ Accuracy: Fluke 83 V: ±(0.4%+1)   Fluke 87 V: ±(0.2%+1) Maximum Resolution: 0.1
Capacitance	Maximum Capacitance 9,999 µF Accuracy ±(1%+2) Maximum Resolution 0.01 nF
Frequency	Maximum Frequency 200 kHz Accuracy ±(0.005%+1) Maximum Resolution 0.01 Hz
Duty Cycle	Maximum Duty Cycle 99.9% Accuracy ±(0.2% per khz +0.1%) Maximum Resolution 0.1%
Temperature Measurement	Fluke 87 V, 87 V/E: -200.0°C - 1090°C   -328.0°F - 1994.0°F   excluding probe
80 BK Temperature Probe	-40.0°C - 260°C   -40.0°F - 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum Conductance 60.00 nS Accuracy ±(1.0%+10) Maximum Resolution 0.01 nS
Diode	Range: 3 V Resolution: 1 mV Accuracy: ± (2 % + 1)
Duty Cycle Range	Accuracy: Within ± (0.2% per kHz + 0.1 %)

Environmental Specifications
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +60°C
Humidity (Without Condensation)	0% - 90% (0°C - 35°C)   0% - 70% (35°C - 55°C)
Operating Altitude	2000 m

Safety Specifications
Overvoltage category	EN 61010-1 to 1000 V CAT III, 600V CAT IV
Agency Approvals	UL, CSA, TÜV, VDE listed

Mechanical & General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g
Weigh With Holster and Flex-Stand	624 g
Display	Digital: 6000 counts updates 4/sec.   (Model 87 also has 19,999 counts in high-resolution mode.) Analog: 32 segments, updates 40/sec. Frequency: 19,999 counts, updates 3/sec at > 10 Hz.
Warranty	Lifetime
Battery Life	Alkaline: ~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010-1:2001
Vibration	Per MIL-PRF-28800 for a Class 2 instrument
