JYETECH DSO150 200KHz Oscilloscope - DSO Shell
Item #DSO150
Others also bought...
Free Shipping
Hantek2D72 3-in-1 70 MHz Oscilloscope, Waveform Generator & Digital Multimeter with a Tactical Safety Case
Overview

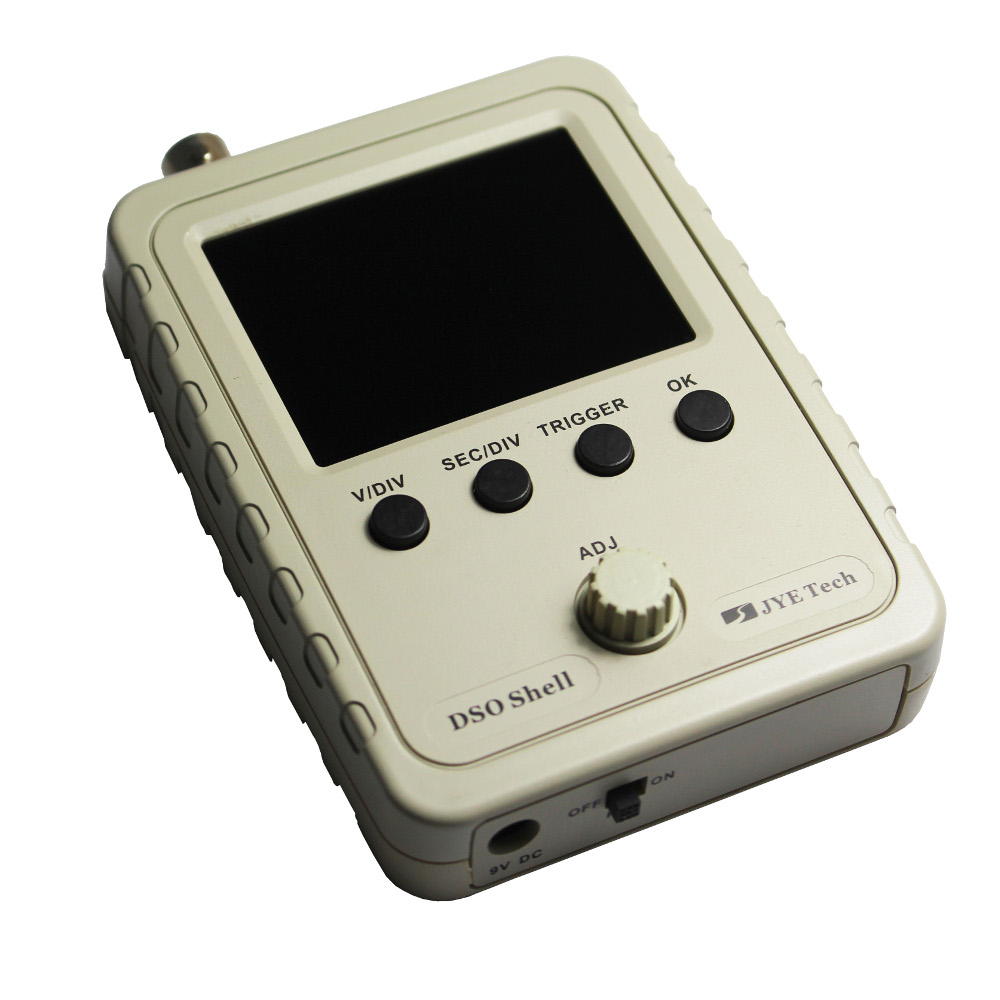

Official JYETech DSO150 200KHz Oscilloscope - DSO Shell
Check out this blog article on this entry level oscilloscope.
Specifications:
- Vertical
- Number of Channels: 1
- Analog Bandwidth: 0 - 200KHz
- Sensitivity: 5mV/Div - 20V/Div
- Sensitivity error: < 5%
- Resolution: 12-bit
- Input Impedance: 1M ohm
- Maximum Input voltage: 50Vpk
- Coupling: DC, AC, GND
- Horizontal
- Max Real-time Sampling Rate: 1Msps
- Timebase: 10us/Div - 500s/Div
- Record Length: 1024
- Trigger
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Position: 1/2 of buffer size fixed
- Display
- 2.4-inch color TFT LCD with 320 x 240 resolution
- Power Supply Requirements (Power Supply NOT INCLUDED)
- 9V DC (8 - 10V acceptable)
- Supply Current: 120mA @ 9V
- Now including the USB-TO-9V step up converter cable (powers the DSO150 from a USB port on a user supplied computer or charger plug)
- Physical
- Dimension: 115mm X 75mm X 22mm
- Weight: 100 gram (not including cables)
Tech Specs
Channels: 1
Screen Type: LCD
Portable: Handheld
Exact Bandwidth: 200KHz
Exact Sampling Rate: 1Msps
