Low Cost PCB Etching System with Agitator and Heater
Now with a new, improved 350 watt quartz heater!
Our affordable PCB etching kit is everything you need to create your own etched circuit boards yet is easy to use and easy to assemble. You can producte a fully etched PCB in as little as 4 minutes. The printed circuit board etching tank features graduated markings to assist in setting appropriate etchant depth (to avoid wasting expensive chemicals). Normal usage requires a minimum of 2 liters, up to a maximum of 2.3 liters of etching solution.
Maximum board size recommended for etching is 7 7/8" x 11 13/6" (20 cm x 30 cm).
Also included are some handy wire clips used to hang your PCB(s) in the tank. This feature makes it easy to lift the board out for an easy quick visual check of the board's progress. Also, since the tank is translucent, board progress can be viewed by shining a light into the tank during the etching process.

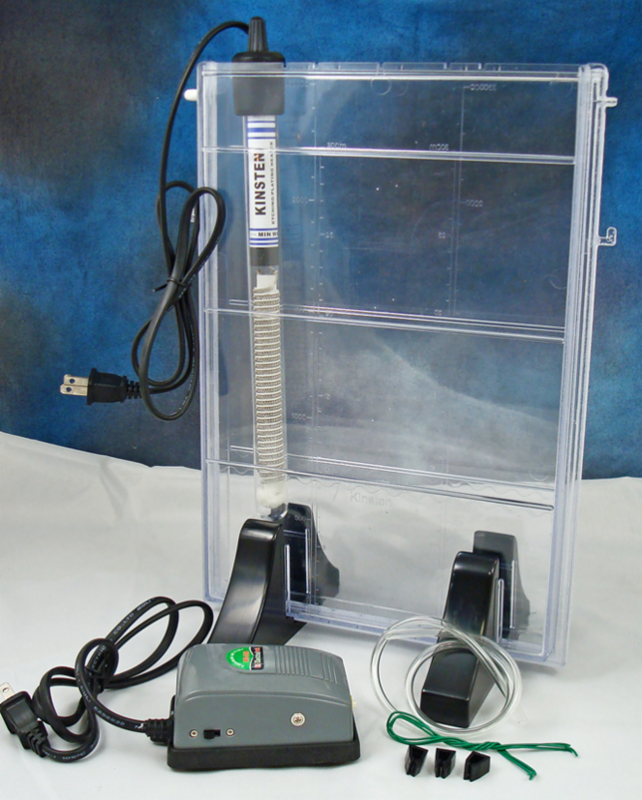

PCB Etching Kit Accessories
- Molded plastic tank construction, high impact plastic
- Plug in 350W quartz heater to heat ferric chloride or etching chemical
- 120V agitating air pump
- Wire circuit board holders that hold the circuit board during etching & ease board handling
- Graduated markings on molded tank to assist with pouring the etching solution
- Tank dimensions: 9 7/16" x 13 3/4" x 1 9/16" (24 cm x 35 cm x 4 cm)
- Typically takes 4 minutes to remove copper and leave a fully etched circuit
For more information, refer to the ET20 PCB Etching System Owner's Manual.
