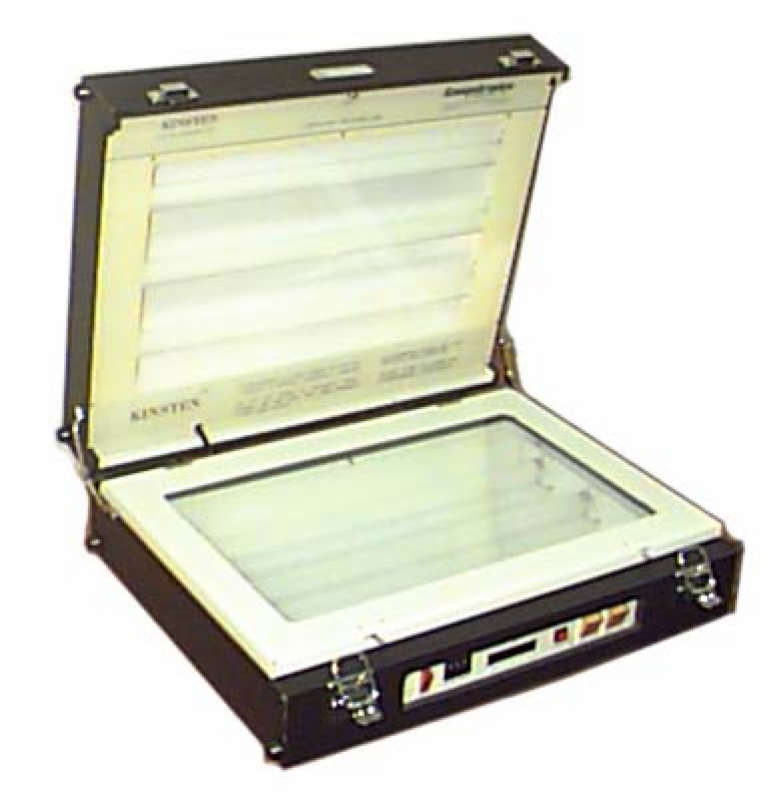

Deluxe UV Exposure Unit With Vacuum Pump

An ultra violet lamp system for fast, even exposures of PCB's. Circuit Specialist's positive pre-senstized boards can be perfectly exposed in 70 to 120 seconds. An integrated vacuum pump "freezes" the PCB for perfect alignment with your artwork.

Features & Specifications

• independently switched upper & lower light tubes for exposure of single sided or double sided PCB's
• A built-in vacuum pump and transparent film cover allowing the user to "freeze" the PCB's in place for perfect alignment to artwork.
• An adjustable timer & counter for setting exposure time.
• A convenient "re-expose" button for repeat settings when doing multiple PCB's.
• 110V/200Woperation
• 6 each 15 watt UV lamps (3 upper/3 lower)
• Exposure area: 16" x 9.5"
• Mask Area, 22cm x 37cm
• Dimensions: 51 x 41 x 15 cm
• weight: 12 Kgs
