The first Bluetooth digital multimeter that uses your iPhone or Android as the display

Mooshimeter has developed the world's first digital multimeter and data logger for your mobile device.

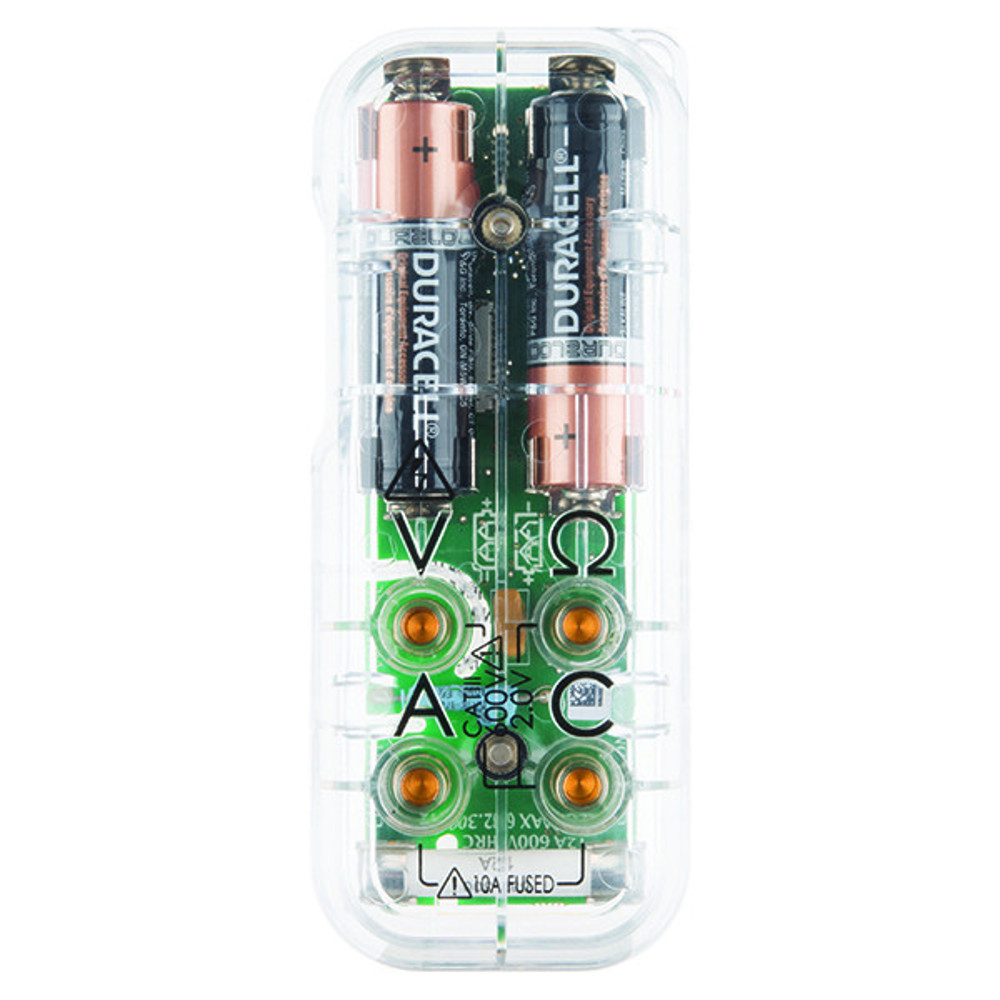

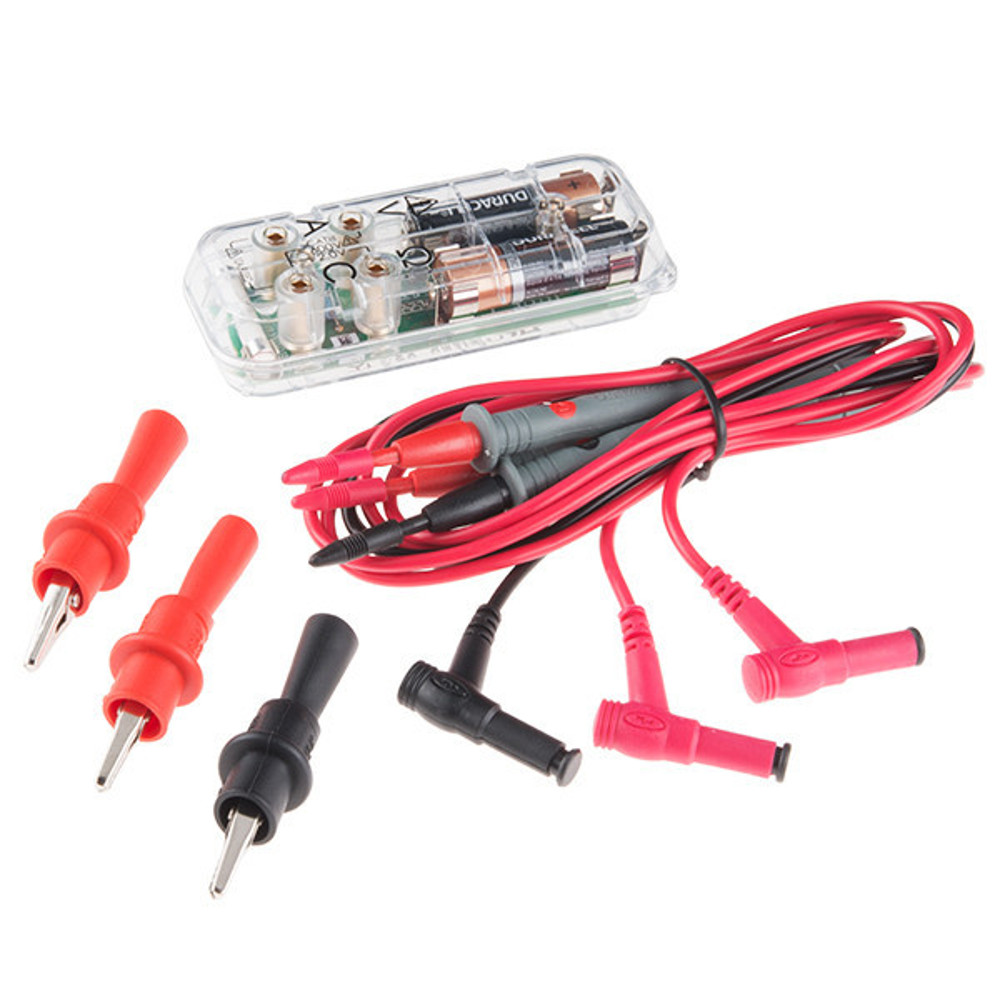

The Mooshimeter is a multi-channel, circuit testing, digital multimeter that pairs with your bluetooth enabled smartphone or tablet and utilizes it as a wireless, high-resolution graphical display while logging the results to an internal SD card. With over 10 megaohms of input impedance you can safely measure 600V and 10A all with 24bit resolution and better than 1% accuracy. Additionally, you can use the onboard temperature sensor to measure ambient temperature or compensate for temperature drift, or attach external thermocouples to measure and log temperature changes.

Features

The Mooshimeter allows you to turn your WiFi-enabled smartphone or tablet (Both iPhone and Android are supported) into a high tech, data logging digital multimeter. You can measure AC or DC voltages up to 600 volts, including 420 volts RMS with better than 0.5% accuracy for DC voltages and better than 1.0% accuracy for AC voltages below 1kHz. You can easily measure resistances with better than 1% accuracy over a range from 20 ohms to 20 megaohms. You can measure diodes with an accuracy of 100nA up to 1 volt. The Mooshimeter's digital interface means that you have the ability to perform 8kHz dual simultaneous sampling and can expect 4kHz of analog bandwidth for most measurements.

With on board storage via a microSD card (up to 32GB - which translates to more than a week of constant logging of two channels at 8kHz) the Mooshimeter's data logging ability means you can monitor a project continuously and save the data for a record or later analysis, even without your iPhone or Android device connected to the multimeter. Alternately, data can transmitted to your smartphone or device over bluetooth and saved or viewed in that manner.

Mooshimeter iPhone or Android Multimeter Specifications

Voltage

Up to 600V, DC or peak AC
Up to 420VAC RMS sinusoidal
Better than 0.5% accuracy DC
Better than 1.0% accuracy AC for harmonic content below 1kHz
>10 Megaohm input impedance

High Precision Voltage

Up to 100mV with <15nV per count resolution
Up to 1.2V with <200nV per count resolution
>10 Megaohm input impedance

Current, Internal

Up to 10 Amps
20 µV / mA burden voltage (using factory fuse)
Less than 5 µA per count in 10 Amp scale
Better than 1% accuracy

Resistance

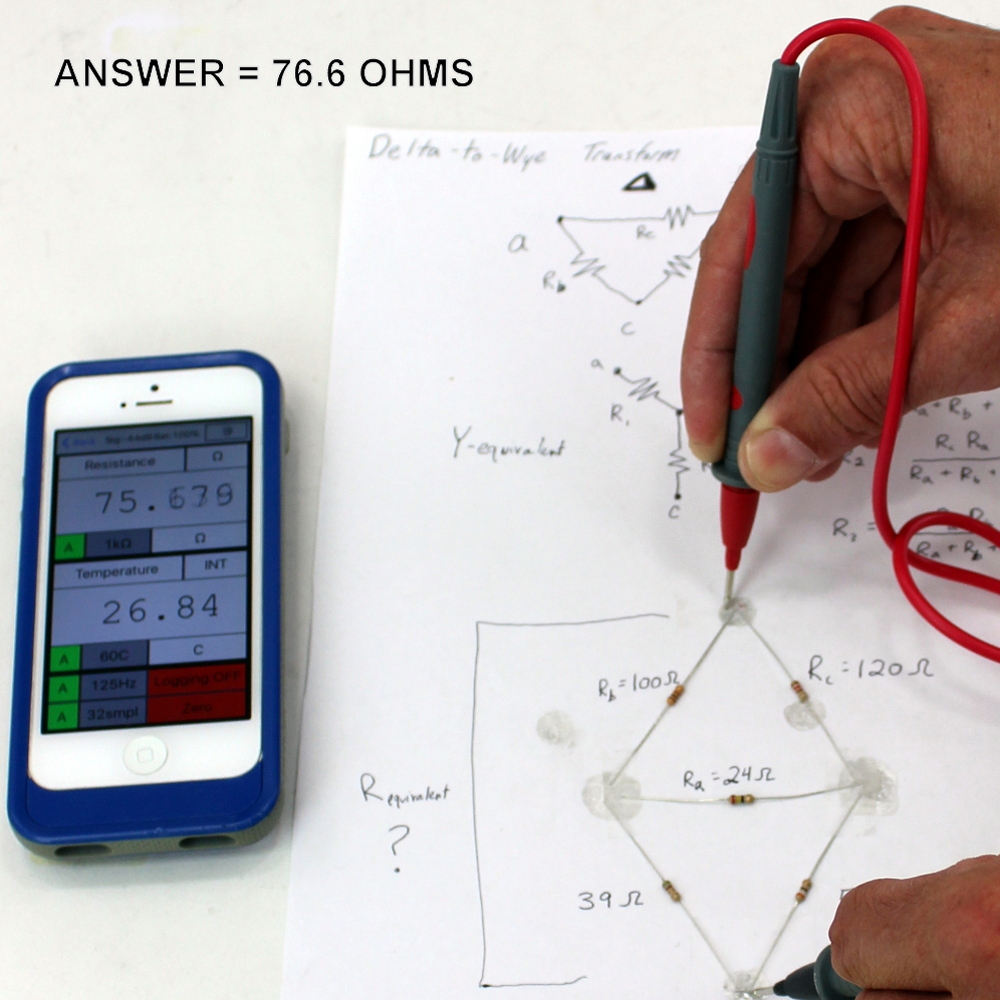

Better than 1% accuracy over 20 Ohms – 20 Megaohms

Frequency

Better than 1% accuracy up to 1kHz

Diodes

Up to 1V @ 100nA

Sampling

8kHz dual simultaneous sampling
4kHz analog bandwidth for most measurements
24-bit resolution max
>18 Effective bits at 125 samples per second

On Board Storage – SD Card

MicroSD Card Up to 32GB (More than a week of constant logging two channels at 8kHz)
SD or SDHC (not SDXC)
(New Feature) Data is logged to SD card continously even without a bluetooth device connected.
(New Feature) Data can transmitted to smartphone device over bluetooth.

Radio:

Protocol: Bluetooth Low Energy
GATT Profile: To be released in 2014

Wireless Range

The wireless range has been tested empirically through the following media to an iPhone 5.

50m air, line of sight
5cm of refrigerator, door closed
1m of 2006 Honda Civic – Engine compartment to the passenger seat
10m air + safety shield of a Tesla Coil rock-bands testing facility

For more information, refer to the Mooshimeter Owners Manual.
