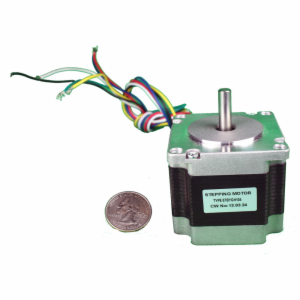

8.2 kg-cm 6 Wire NEMA 23 Stepping Motor

8.2 kg-cm (113.8 oz-in) 6 Wire NEMA 23 Stepping Motor

Specifications:

• Step angle: 1.8°
• Voltage (V): 2.53
• Current (A): 2.1
• Resistance (Ohms): 1.1
• Inductance (mH): 1.4
• L0 Dimension (mm): 50
• L1 Dimension (mm): 21
• Holding Torque (kg.cm): 8.2
• Control Wires: 6
• Insulation Resistant: 500V DC 100 MOhm Min
• Insulation Strength: 50Hz 1Minute 500V Min
• Ambient Temperature: -20°C~+50°C
• Temperature Rise: 80°C Max.
• Radial Play: 0.02mm Max.
• End Play: 0.1-0.3mm

Wiring Diagram:

Learn more about stepper motors

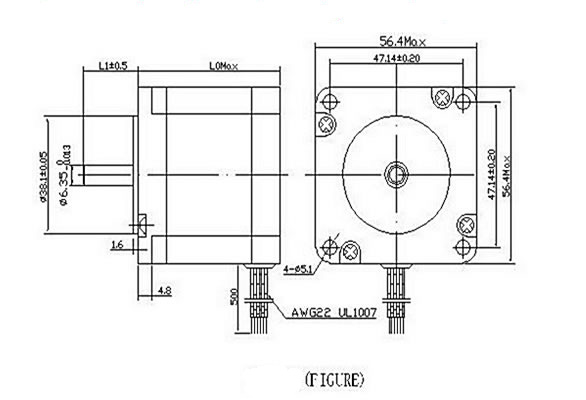

Mechanical Dimensions:

Number of Wires: 6 WIRE
