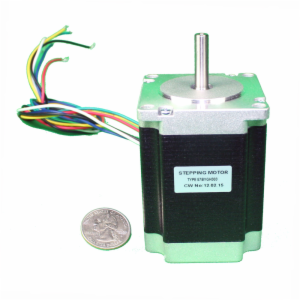

15.0 kg-cm 6 Wire NEMA 23 Step Motor
Item #57BYGH303
$31.29
Bulk Pricing Discount
1
$31.29
10 +
$27.71
Qty
5 in stock
Others also bought...
Overview
15.0 kg-cm (208.3 oz-in) 6 Wire NEMA 23 Step Motor
Specifications:
- Step angle: 1.8°
- Voltage (V): 5.75
- Current (A): 2.3
- Resistance (Ohms): 2.5
- Inductance (mH): 5.3
- L0 Dimension (mm): 76
- L1 Dimension (mm): 21
- Holding Torque (kg.cm): 15.0
- Control Wires: 6
- Insulation Resistant: 500V DC 100 MOhm Min
- Insulation Strength: 50Hz 1Minute 500V Min
- Ambient Temperature: -20°C~+50°C
- Temperature Rise: 80°C Max.
- Radial Play: 0.02mm Max.
- End Play: 0.1-0.3mm
Compatible with these Controllers:
- CW230
- CW250
- CW860
Wiring Diagram:
Mechanical Dimensions:
Tech Specs
Number of Wires: 6 WIRE
