IR Thermometer with K-type thermocouple capability
Lighten up your toolbox. The Fluke 561 IR and contact thermometer, combines the temperature measurement functions that industrial, electrical, and HVAC/R professionals need, all in one tool. It measures both infrared and contact temperature, replacing several other test tools. It’s fast, efficient, and easy to use, saving you valuable time and effort.
With the Fluke 561 infrared thermometer, you can also take contact and ambient temperatures in the way that’s best for you. Use the IR thermometer to measure hot, moving, electrically energized, and hard-to-reach objects instantly. Check motors, insulation, breakers, radiant heating, pipes, corroded connections, and wires. Plus, scan ducts, and other hard-to-reach objects from the floor-leave your ladder in the truck. You can use the Fluke 561’s handy Velcro® pipe probe, or plug in any industry standard type K mini connector thermocouple probe you already own to take super-heat or internal temperatures.
Features:
- IR thermometer for quick measurements up close, or at a distance, without a ladder
- Contact thermometry capability, compatible with all standard mini-connector type K thermocouples, preserves your investment in thermocouples
- Velcro® pipe probe for superheat and sub-cooling and other contact and ambient measurements
- Single-point laser sighting
- Temperature range of -40 °C to 550 ° C (-40 °F to 1022 °F) covers most industrial and residential applications
- Easy emissivity adjustment (Lo, Med, Hi) for measuring pipes and other shiny materials more accurately
- Lightweight (just 12 ounces/340 grams) and portable
- Very easy to use
- Efficient-no need to shut down equipment when making IR measurements
- MIN, MAX, and DIF functions help you quickly identify problems
- Scan large areas or small objects quickly and efficiently

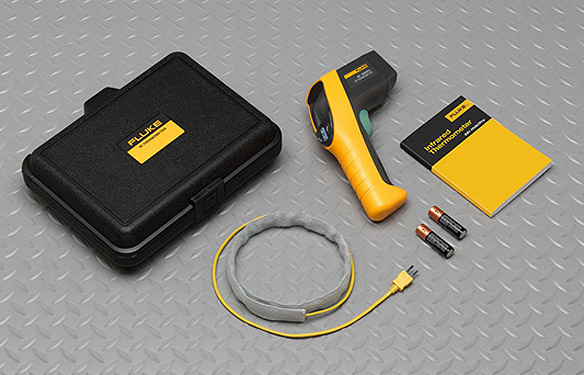

Includes:
- 561 IR thermometer
- K-Type thermocouple Velcro® pipe probe
- Hard carrying case
- 2 AA batteries
- Users manual
| General Specifications |
| Temperature |
| |
-40 to 550 °C (-40 to 1022 ° F) |
|
| Display Resolution |
| |
0.1°C (0.1 °F) of reading |
|
| D:S (Distance to spot size) |
|
| Easy Emissivity Selector |
| |
Adjustable with three settings: |
| |
Low (0.3), Medium (0.7). High (0.95) |
|
| Display Accuracy [Assumes ambient operating temperature of 23°C(73°F) to 25°C(77°F)] |
| |
±1.0 % of reading ±1 % of reading or ±1 °C (±2 °F), whichever is greater below 0 °C/32 °F, ±1 °C (±2 °F) ± 0.1°/1° |
|
| Response Time |
| |
500 mSec (95 % of reading) |
|
| Repeatability |
| |
±0.5 % of reading or ±1 °C (±2 °F), whichever is greater |
|
| Spectral Response |
|
| Laser Sighting |
|
| Laser Shutoff |
| |
Laser turns off above ambient temperature of 40 °C (104 °F) |
|
| Laser Power |
| |
Class 2(II) operation; Output <1mW, wavelength 630-670 nm |
|
| Relative Humidity |
| |
10 % to 90 % RH non-condensing, at <30 °C (86 °F) |
|
| Power, battery life |
| |
2 AA batteries (alkaline or NiCD) |
|
| Battery Life |
|
| Display Hold |
|
| Backlit Display |
| |
Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options |
|
| Warranty |
|
| Operating Temperature |
| |
0 °C to 50 °C (32 °F to 120 °F) |
|
| Storage Temperature |
| |
-20 °C to 65 °C (-25 °F to 150 °F) |
|
| MAX, MIN, DIF Temperatures |
|
| Thermocouple Type K Mini Adapter Input |
| |
Yes, compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range. |
|
| Thermocouple Type K Velcro Pipe Probe |
| |
Yes, with a temperature range of 0 °C to 100 °C (32 °F to 212 °F) and accuracy of ±2.2 °C (±4 °F) |
|
| HVAC Measurement Guide |
|
View Users Manual
