OSEPP 124 RPM DC Metal Gear Motor - LS-00086

by OSEPP
SKU LS-00086
Original price $13.95 - Original price $13.95
Original price
$13.95
$13.95 - $13.95
Current price $13.95
Availability:
47 in stock, ready to be shipped

Free Shipping on Orders over $99!

Use promo code FREESHIPPING at checkout. Some exclusions apply. Learn more.

1 Year Limited Warranty

Learn More

Ships Same Day!

All orders for in-stock items placed before 12pmMST Monday through Friday, ship same day!

Request a Quote
Manuals, Datasheets, and Other Documents

OSEPP 124 RPM DC Metal Gear Motor - LS-00086

Suitable for hobby, models, science and other projects

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 18V
Speed (No Load)* 124 rpm
Current (No Load)* 0.10A
Current (Stall)* 3.8A
Torque (Stall)* 419.45 oz-in (30.20 kgf-cm)
Gear Ratio 78:1
Gear Material Metal
Gearbox Style Straight Cut Spur
Motor Type DC

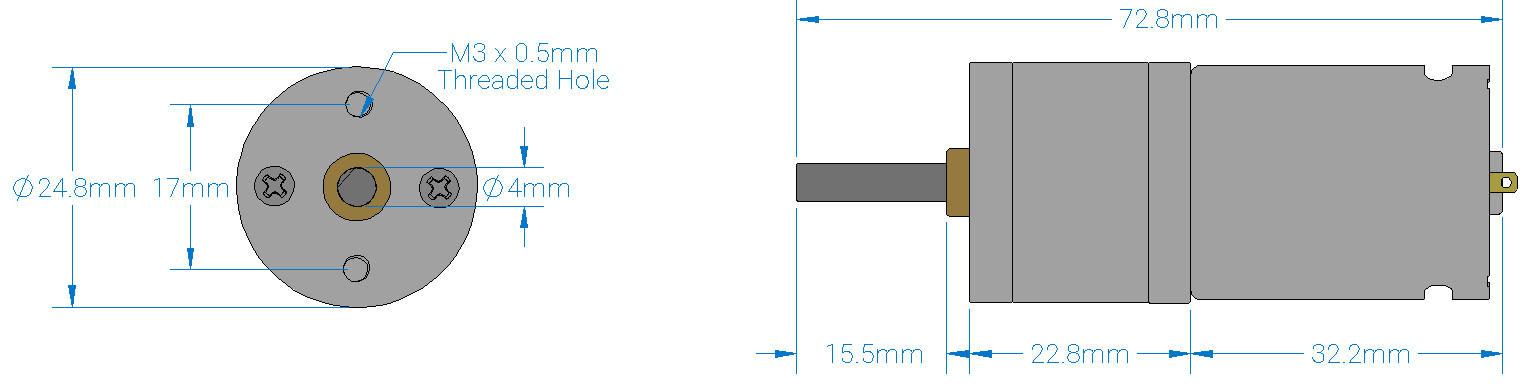

Output Shaft Diameter 4mm (0.1575”)
Output Shaft Style D-shaft
Output Shaft Support Bushing
Electrical Connection Male Spade Terminal
Operating Temperature -10°C ~ +60°C
Mounting Screw Size 3mm
Product Weight 0.20lb (3.25oz)
