Siglent SSA3021X-PLUS 2.1 GHz Spectrum Analyzer
The SSA3021X-PLUS now includes the Tracking Generator kit at no additional charge! Savings of $169.
*Please Note: This item may ship from a seperate warehouse and could be shipped in a seperate package/shipment.
(the image shown is for ilustration only and the actual item may vary from the image shown.)
The SSA3021X-PLUS improves on the already solid performance of the SSA3021X, adding a 10.1” multi-touch screen, external keyboard & mouse support, and a web server. Performance improvements include a DANL of -161 dBm/Hz (vs. -151dBm/Hz) and Frequency Counter Resolution of 0.01Hz (vs. 1Hz).
Siglent’s SSA3021X Plus spectrum analyzer offers a frequency range of 9 KHz to 2.1 GHz. With light weight, small size, and friendly user interface, the SSA3021X-PLUS presents a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.
Key Features
- All-Digital IF Technology
- Frequency Range from 9 kHz up to 2.1 GHz

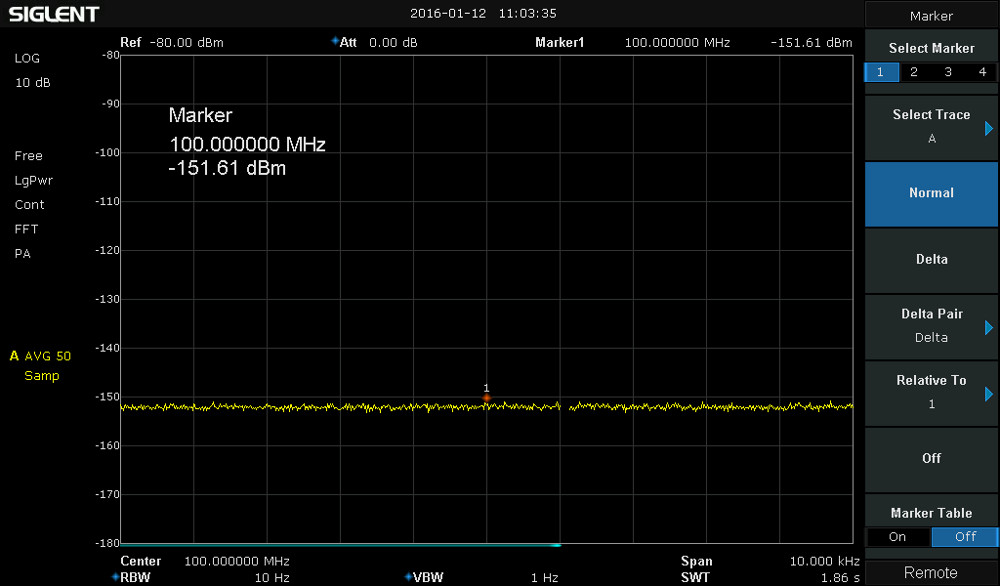

- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Total Amplitude Accuracy < 0.7 dB

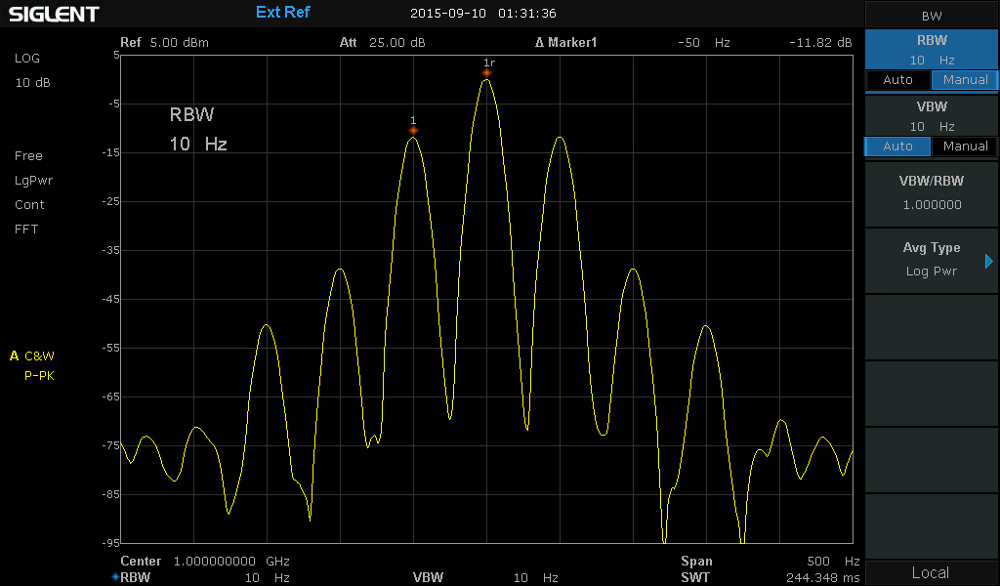

- 10 Hz Minimum Resolution Bandwidth (RBW)
- Standard Preamplifier
- Up to 3.2 GHz Tracking Generator Kit (Opt.)
- Reflection Measurement Kit (Opt.)
- Advanced Measurement Kit (Opt.)
- EMI Pre-compliance Measurements Kit (Opt.)
- 10.1 lnch WVGA (1024x600) Display

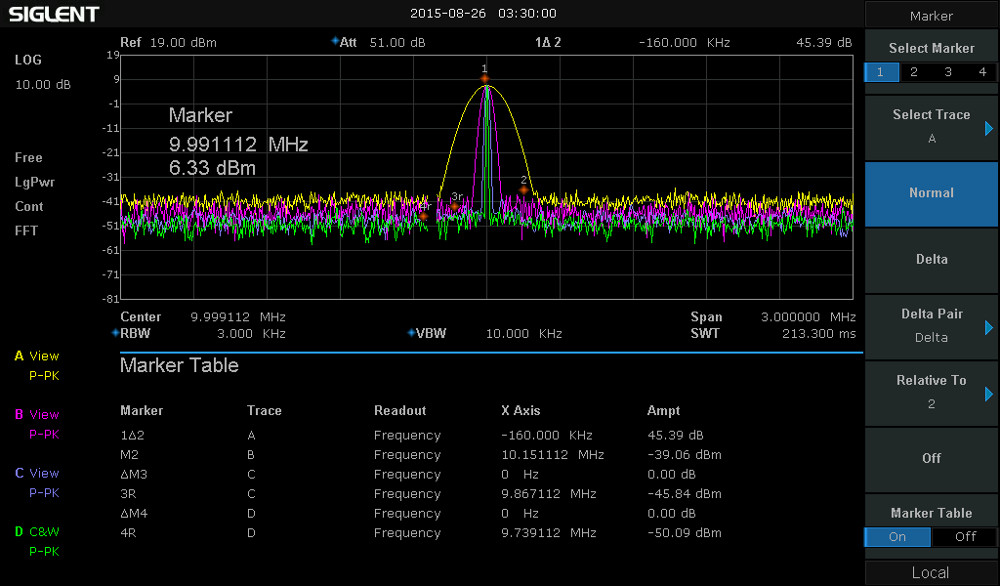

Intuitive menu, easy-to-use, support four traces and cursors independently
System interface shows a simple design style. The menu layout is optimized to display an informative one-page operation. Four traces are classified by color, which helps users to distinguish appropriate spectra changes. The screen employs powerful cursor – assisted measurements. Data and waveforms can be displayed on the screen simultaneously.

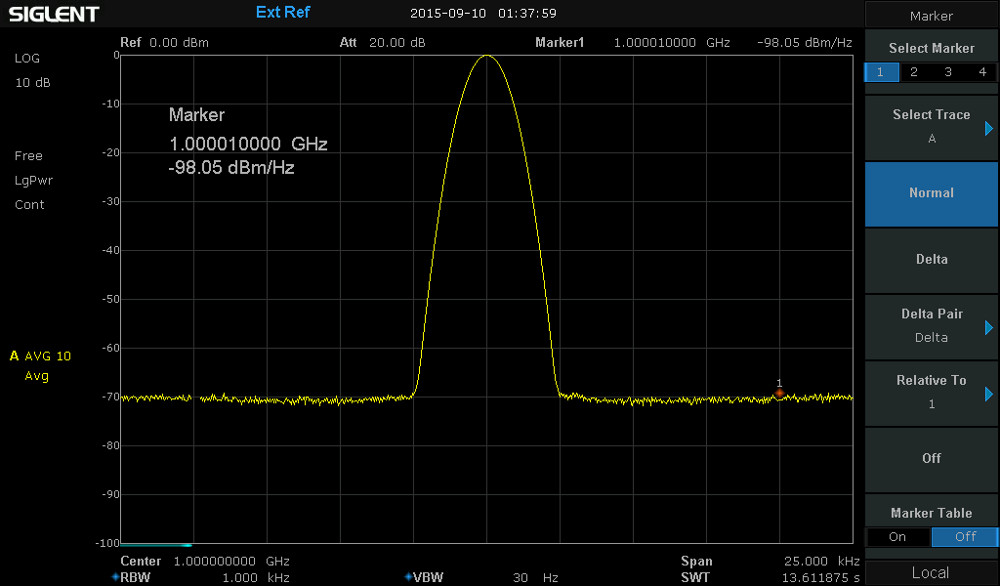

Phase noise -98 dBc/Hz @1 GHz @ 10 kHz offset
Excellent phase noise performance enables users to evaluate most synthesizers and signal generators.

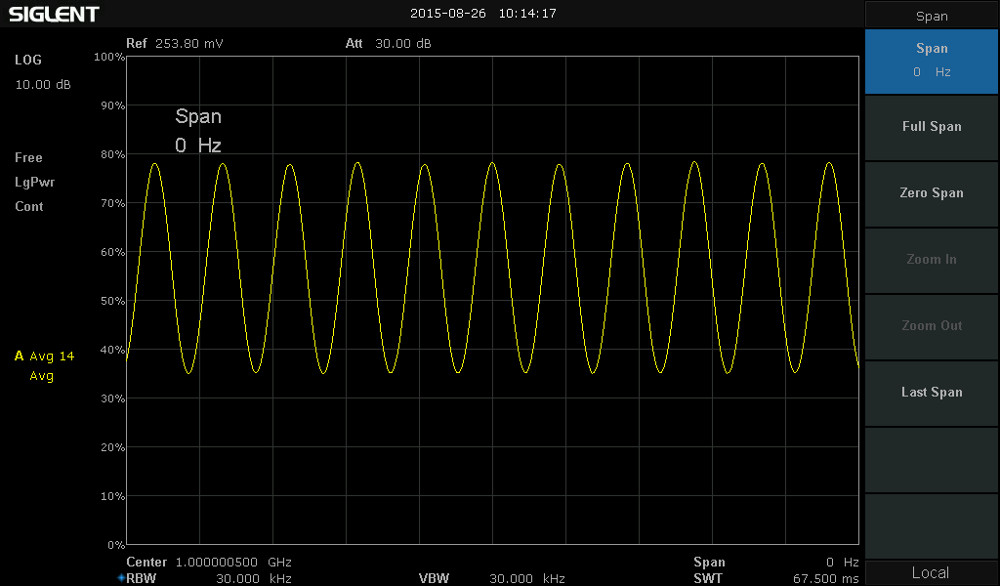

Demodulation at the zero span setting
When the spectrum analyzer is set at zero span, the detector can demodulate the input signal enabling users to observe the modulated signals on screen over time. The SSA3000X includes a front panel audio output jack for listening to AM and FM demodulated signals.
Advanced power measurement, calculate the ACPR parameters
Radio communication standards maintain strict requirements for output power and adjacent channel power leakage. The optional advanced power measurement kit can measure channel power, adjacent channel power ratio, occupied bandwidth, time domain power and other parameters to ensure system performance.

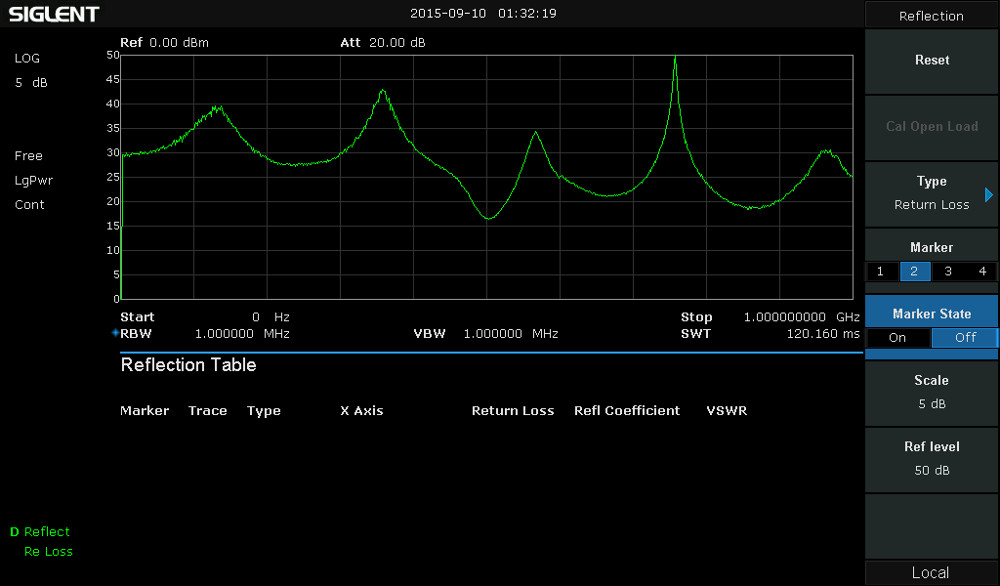

Reflection measurement, acquire characteristic curve of the Return Loss
The optional reflector kit can easily measure S21, S11, and acquire characteristic curve of the Return Loss and VSWR.

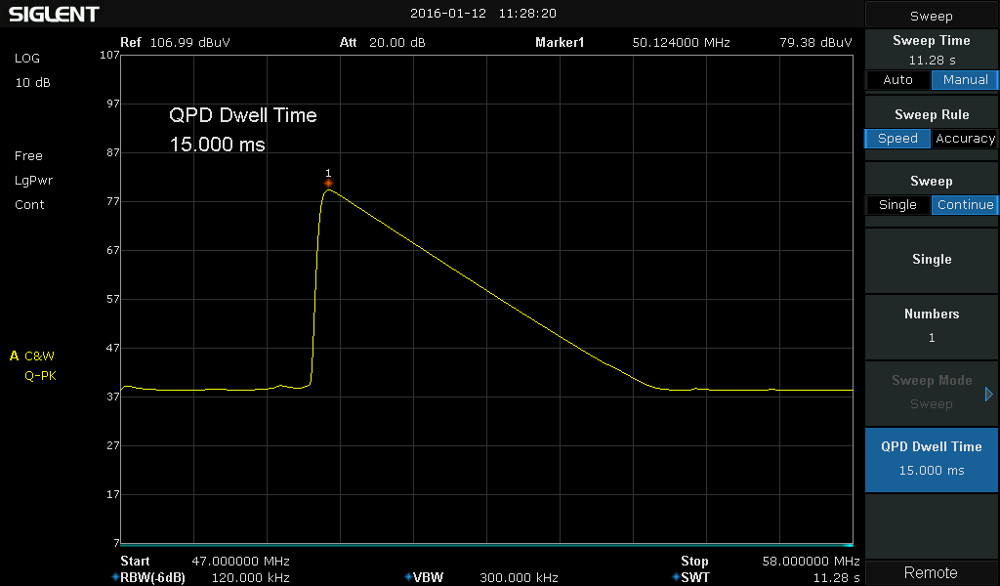

EMI filter, Quasi Peak detector with limit template following CISPR 16
The optional EMI Pre-compliance Measurements Kit offers Quasi-Peak detector and EMI filters (200 Hz, 9 kHz, 120 kHz, -6 dB bandwidth). Importing stored limit templates makes it easy to evaluate EMI levels for pre-compliance testing.
