72 Volt DC 1.5 Amp Programmable Linear Power Supply

Item no. CSI3646A

72 Volt DC 1.5 Amp Programmable Linear Power Supply

Item no. CSI3646A
4 In stock

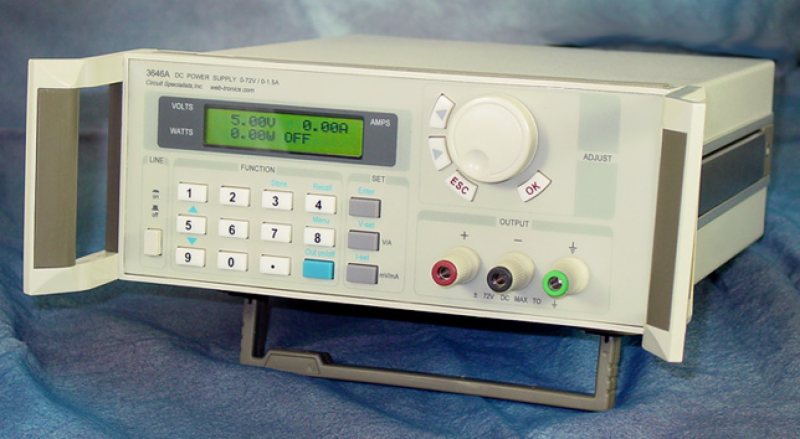

Programmable DC Bench Power Supply 0-72V/ 0-1.5A

The CSI3646A Programmable Power Supply is equipped with a back-lit LCD display, number keypad and a rotary code switch for ease of use & quick programming. Voltage, Current & Power can all be displayed on the LCD or computer screen (with optional RS-232 or USB interface module). It can be operated at constant current mode, constant voltage mode & constant power mode. It also can be set with maximum limits for current & power output. Up to 10 individual settings may be applied & stored in memory for lightning fast recall. An ideal bench power supply for scientific research, educational labs or any application requiring a sophisticated DC-power source.

Key Features of the CSI3646A Programmable Power Supply:

  • LCD display with back light
  • Numeric keypad and rotary knob
  • High Resolution at 1mV
  • Up to 10 settings stored in memory
  • Over or under voltage protection
  • Over or under current protection
  • Adjustable & constant voltage outputs
  • Adjustable & constant current outputs
  • Can be set for user defined maximum current
  • Easy programming via keypad or rotary code switch
  • Power shut-down memory function
  • May be monitored via PC software (requires optional RS232 adaptor module)
  • Small-Size, light weight for easy transportation
  • May be used in series or parallel modes with additional CSI3646A supplies.


Note: For use on a computer with only a USB port, we recommend the ICUSB232FTN USB to RS-232 Null Modem Adapter and a  RS103 9 PIN Male to Male Gender Changer.


Users Manual

3600 Series Power Software

USB Driver

36xx control protocol

View our bench power supply main page

View our programmable DC loads

View our 0-18 volt version of this programmable power supply

View our 0-36 volt version of this programmable power supply

Product Details

Programmable: YES

Product Type: DC Power Supply

# of Outputs: 1
